Tarot GOPRO T4-3D Dual suspension 3 axis Gimbal TL3D02

product manual:

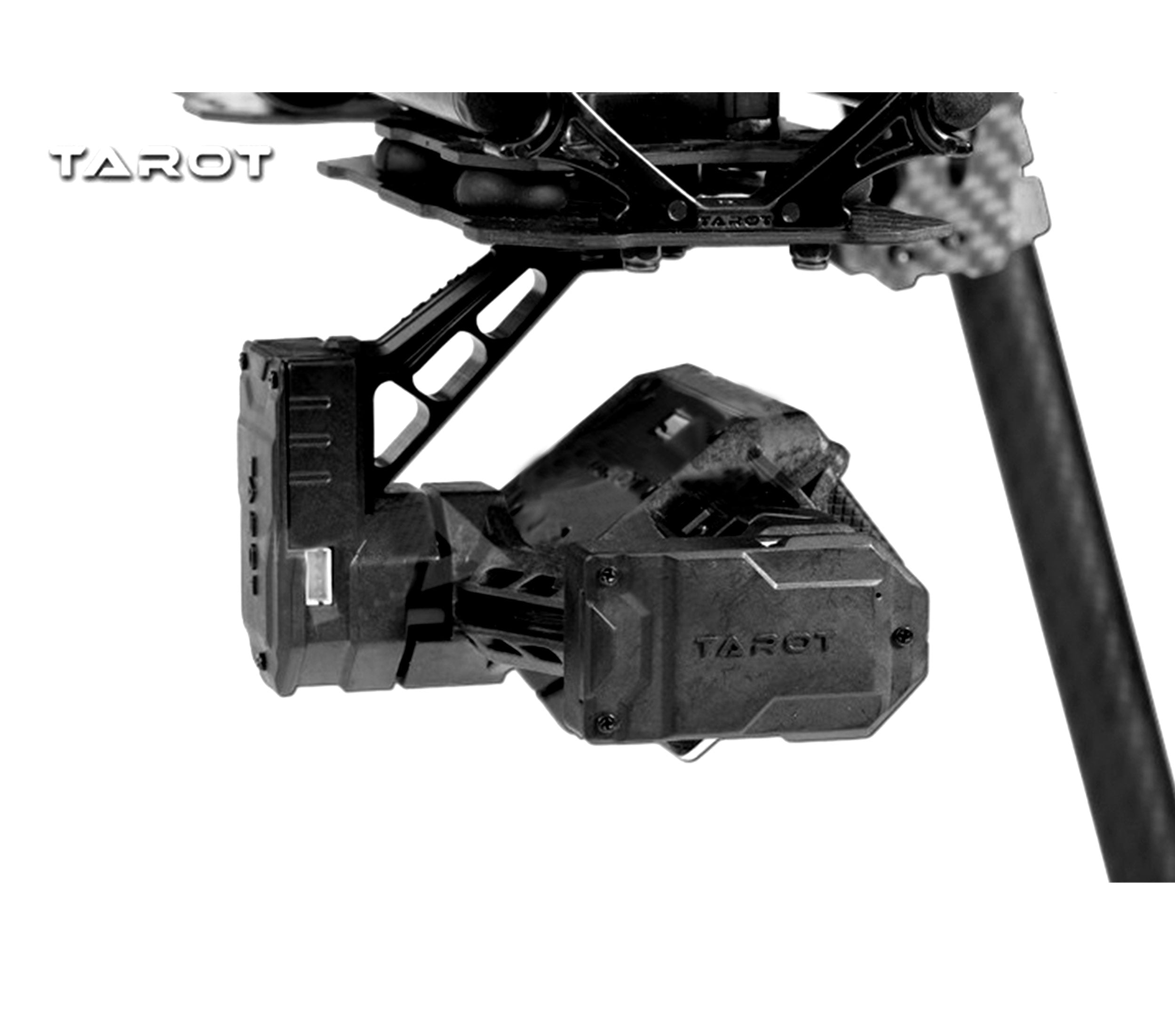

The Tarot T4-3D double-suspension three-axis self-stabilizing pan/tilt is specially designed for GOPRO HERO3/HERO4 and the same size weight camera, integrating all the high-end technologies of the TAROT series. The combination of aluminum alloy and engineering plastics provides lightweight and strongest stability. Even in harsh environments, it can accurately lock the camera to maintain high stability and output the ultimate industrial-grade image. The best choice for professional film and photography photographers and aerial photography enthusiasts.
The Tarot T4-3D double-shock three-axis self-stabilizing pan/tilt adopts an advanced pan/tilt control algorithm, with built-in independent IMU to precisely control the attitude of the gimbal, and integrates the pan/tilt and servo drive modules. Supports both pointing (PF) and first person (FPV) modes of operation. All power and signal lines are cleverly embedded in the gimbal structure. The pitch speed of the pitch axis is controllable, and the amount of the rocker corresponds to the rotational speed of the pitch axis. The larger the amount of the lever, the faster the rotational speed.
Product Features:
Support computer interface settings
Point following mode (PF)
First person mode (FPV)
Built-in independent IMU module
TAROT PTZ dedicated servo drive module
AV output interface
Wide range voltage input support
Support conventional receiver / S-Bus receiver / DSM receiver
peripheral equipment:
Support camera type: GOPRO HERO3/HERO4 and camera of the same size
Input power: 2S~6S LiPo battery
Mechanical / Electronic Characteristics:
Angle control accuracy: ±0.02°
Maximum controllable speed:
Tilt direction (TILT): ±200°/s
Controllable range of rotation
Tilt direction (TILT): -120° to +15°
Working current: 30mA (@25V) 50mA (@12V)
Stall current: 350mA (@25V) 700mA (@12V)
Working environment temperature: -20 ° C ~ 50 ° C
Weight: 201g
Size: 100mm × 88.5mm × 105.6mm
Assistant software installation requirements:
Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
Product specifications:
Double suspension three-axis brushless cloud table ×1
PTZ master module ×1
PTZ master and PTZ main body connection line ×1
5V output, receiver and video line × 1
USB module × 1
Flight control cable ×1
Packing box × 1
