Skydroid T12 2.4GHz 12CH Intergrated Control Video and Telemtry System 20km Range Transmitter with R12 Receiver and Camera for RC Drone

Note: Battery goods and build-in battery goods, delivery channel and delivery date details please email: hi@insightfpv.com

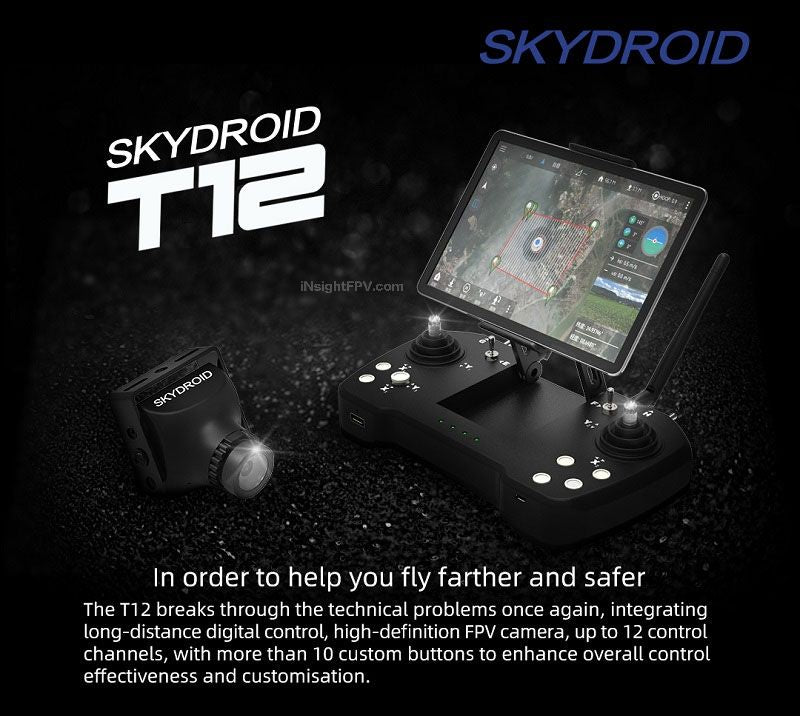

T12 is an integrated remote controller supports data transmission, video transmission and remote control, suitable for Fixedwing, multicopter, intelligent robot, etc.

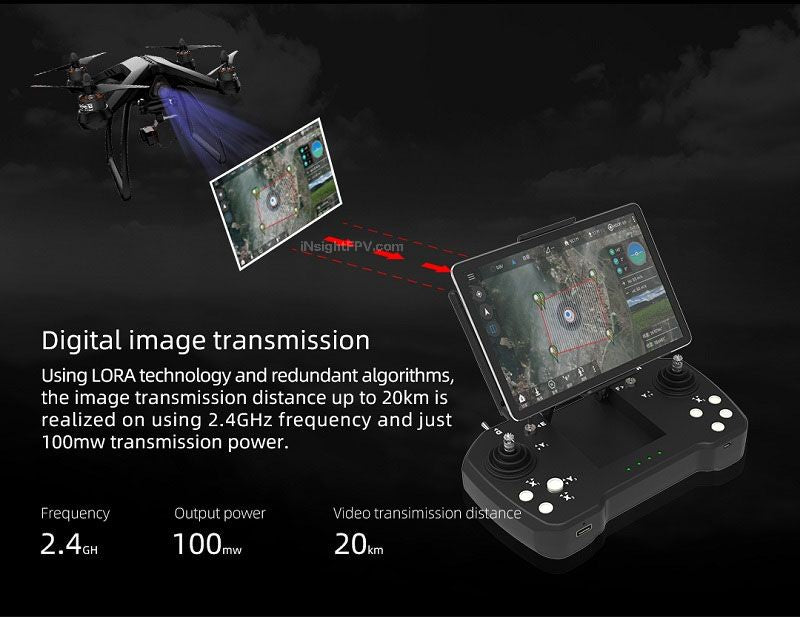

The working frequency of T12 is 2.4G, transmission power is 100mw. T12 adopts FHSS technology and Omni high gain antenna,  the video, and data transmission distance is about 10km. The remote controller has a built-in 4000mAh battery, the working time is about 25hours.

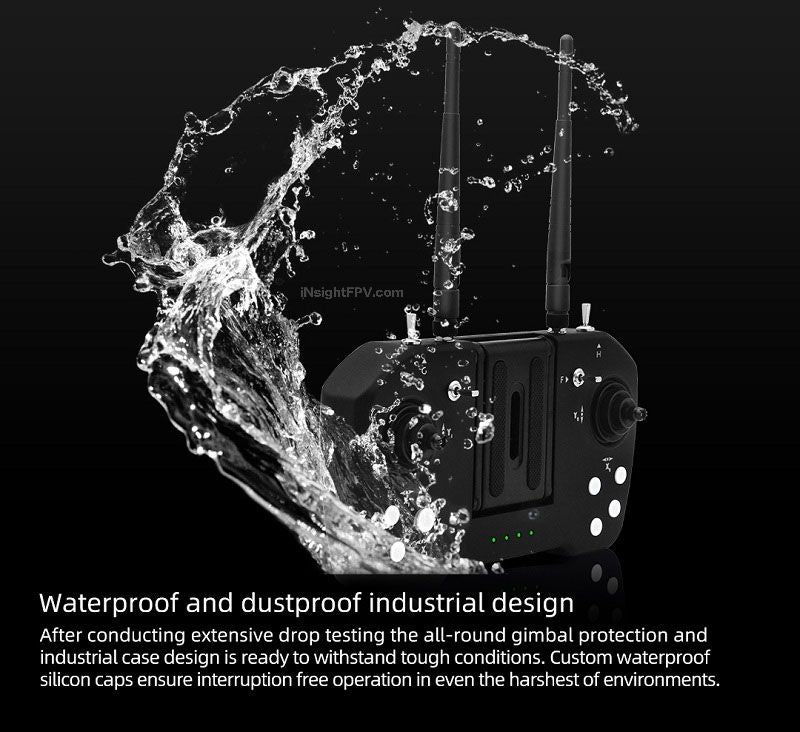

The remote controller is waterproof and dustproof, and features high expansibility, supports multiple interfaces like S.BUS, PPM, PWM, I2C, and serial port. The default signal interface of the T12 receiver is S.BUS, it can be switched to PPM in APP.

T12 is equipped with a mini camera, the resolution of which is 720P, but the real-time video transmission resolution is 480P.

The remote controller can be connected by Bluetooth and USB cable. So the data can be sent to your cellphone through Bluetooth, and you can see all parameters or set on your cellphone, like mode, Nor/Rev, failsafe, Sbus, ppm output, and baud rate, etc. Also could link the remote controller to your laptop through a USB cable.

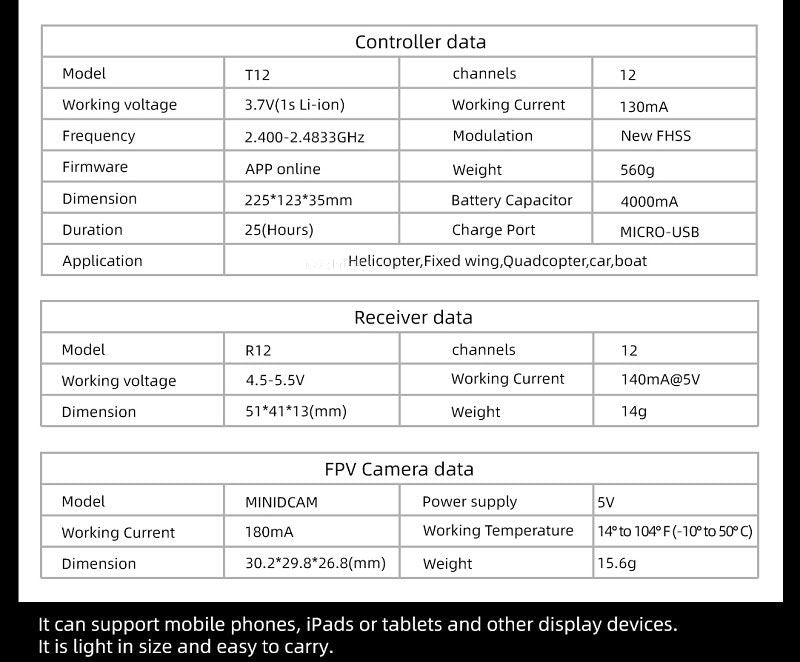

Specifications:
Brand: Skydroid
Item name: T12 Transmitter
Number of channels: 12 channels
Frequency: 2.400-2.4833GHz
Working voltage: 3.7V(1s Li-ion)
Working Current: 130mA
Modulation: New FHSS
Weight: 560g
Firmware: APP online
Dimension: 225*123*35mm
Duration: 25 hours
Battery Capacitor: 4000mA
Charge Port: MICRO-USB
Application: Helicopter,Fixed wing,Quadcopter,car boat

R12 Receiver:
Model: R12
Number of channels: 12 channels
Working voltage: 4.5-5.5v
Working Current: 140mA@5V
Dimension: 51*41*13MM
Weight: 14g

Camera
Model: MINIDCAM
Power Supply: 5V
Working Temperature: 14-104°F (-10°-50°）
Dimension: 32.2*29.8*26.8mm
Weight: 15.6g

Features:

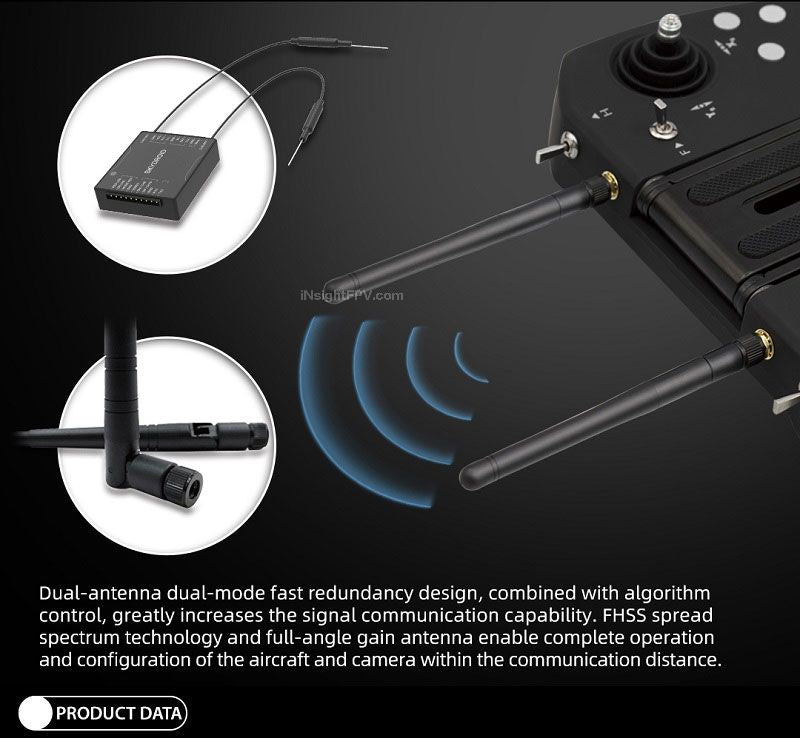

-Build-in high-efficiency antenna to avoid delay in digital transmission. For safety flying
-Build-in intelligent communication. Increase the stability of long-distance transmission. Dual antenna dual module
-Supported by FHSS technology. The longer distance can reach 20km
-Hall sensor gimbal with permanent magnetic sensor make longer life to 30 years. Military-grade anti-dust protective gimbal cover
-Remote dimming camera with &w LED can capture video clearly at night
-Bluetooth plus USB wire provide reliable link up
-24hrs continues working with one charge
-Legal 100mw output power comply with a related certificate for export
-Battery is MSDS certified so it is allowable to carry on the plane

Package Included:
1 x T12 Transmitter
1 x R12 Receiver
1 x Camera
