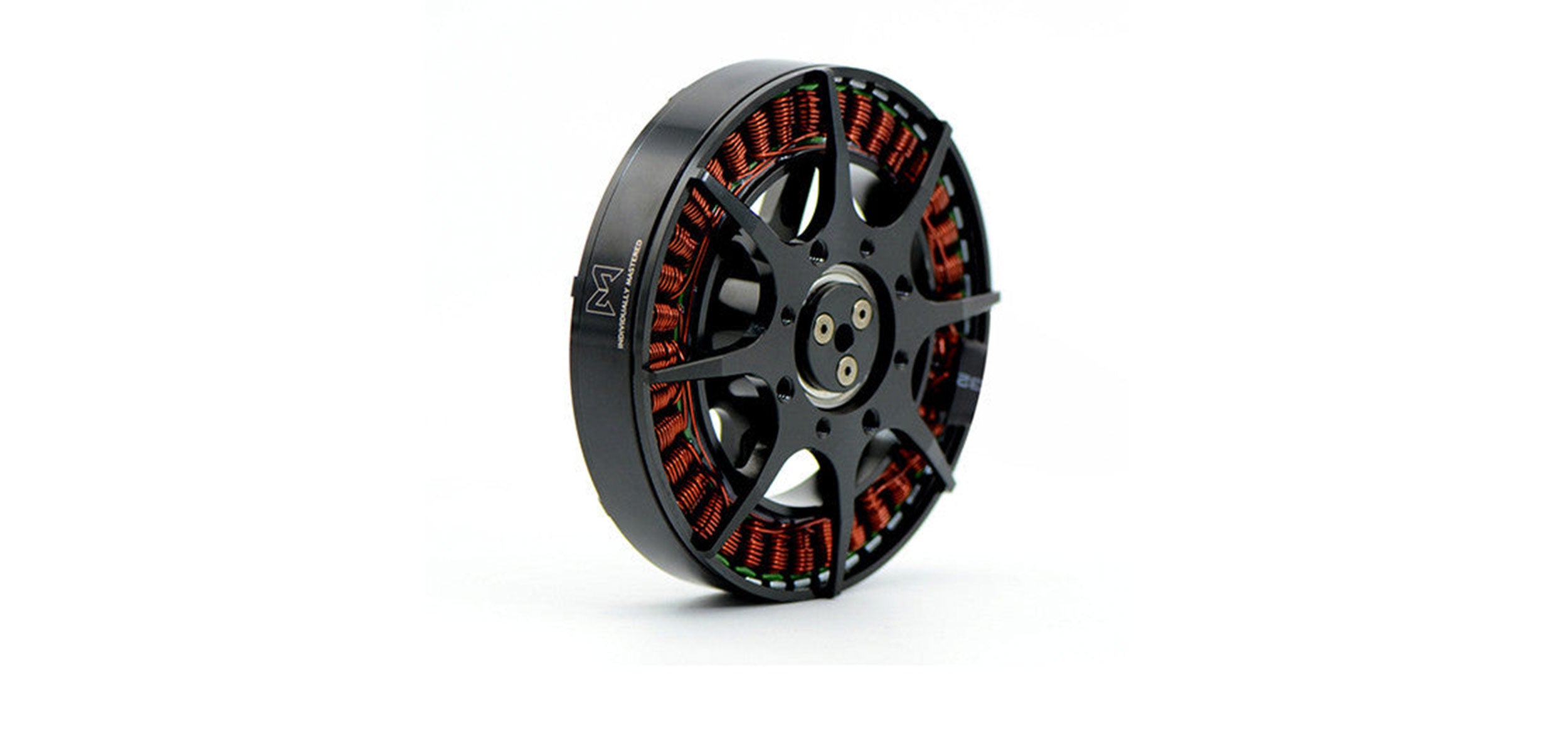

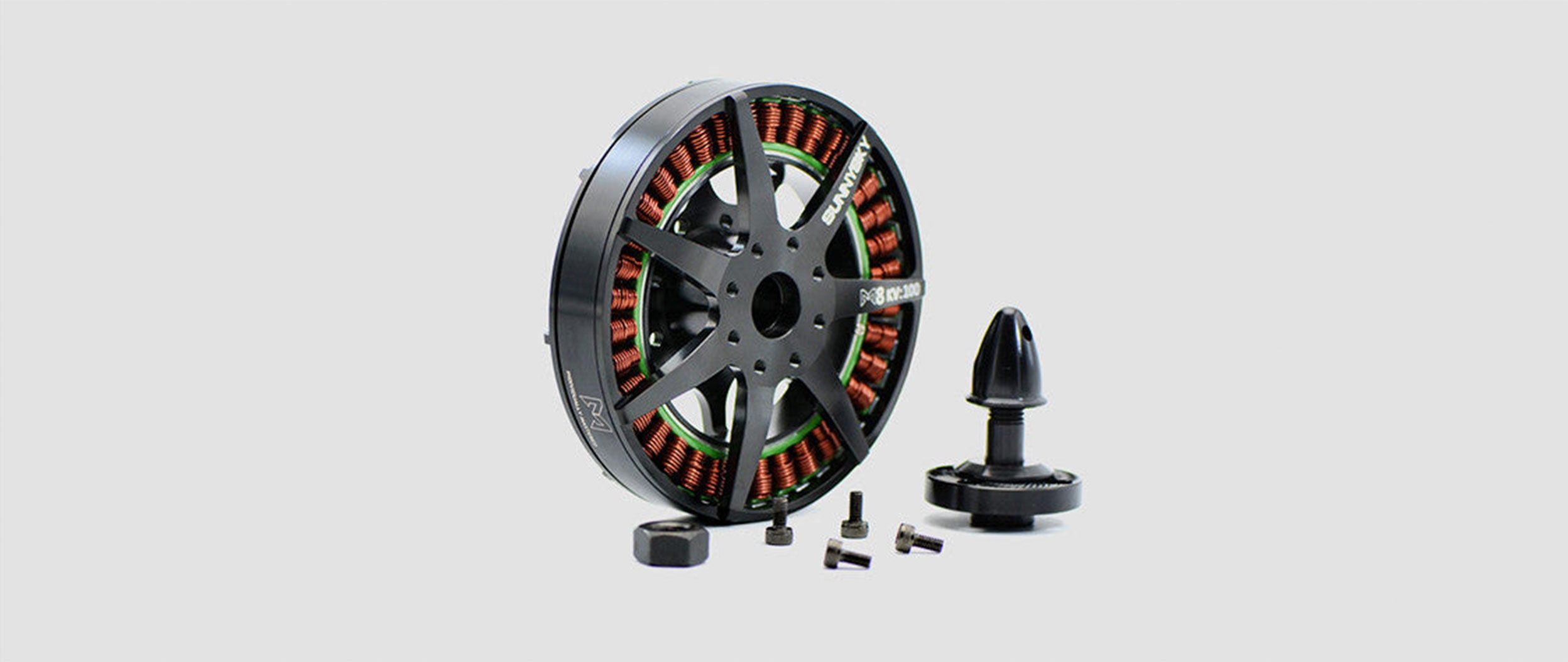

SunnySky M8丨8108 Brushless Motors

Available: In Stock
$199.99
  • Order within

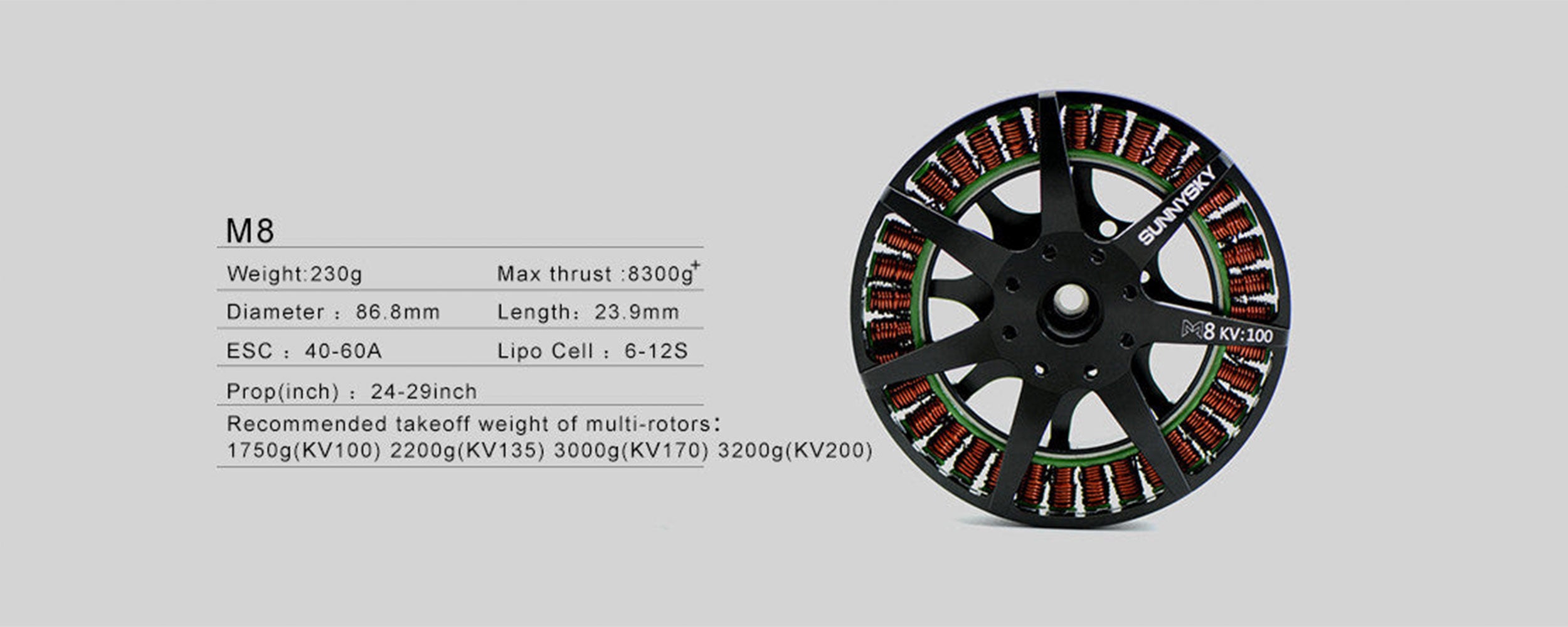

KV100

Stator Diameter 81mm Rotor Diameter 86.8mm
Stator Thickness 8mm Body Length 23.9mm
No.of Stator Slots 36 Max Lipo Cell 6-12S
No.of Rotor Poles 42 ESC 40-60A
Motor Kv 100 Recommended Prop(inch) 8-12S Lipo 26*8.5/8-10S Lipo 28*9.2/6-8S Lipo 29*9.5
No-load current 0.6A/10V Recommended single take-off Weight ≤1750g
Motor Resistance 181mΩ
Max Continuous Current 25A/180s
Max Continuous Power 1100W
Weight

230g





Prop(inch) Voltage(V) PRM Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
26*8.5 29 790 0.5 250 15 17.24 45℃
1077 1 500 29 17.24
1315 1.5 750 44 17.24
1526 2.2 1000 64 15.67
1680 3 1250 87 14.37
1850 3.9 1500 113 13.26
1980 4.7 1750 136 12.84
2150 5.9 2000 171 11.69
2390 8 2500 232 10.78
2490 9.2 2790 267 10.46
33 782 0.4 250 13 18.94 52℃
1075 0.8 500 26 18.94
1323 1.4 750 46 16.23
1526 2 1000 66 15.15
1680 2.6 1250 86 14.57
1830 3.3 1500 109 13.77
1980 4.2 1750 139 12.63
2140 5.1 2000 168 11.88
2390 7.1 2500 234 10.67
3610 9.2 3000 304 9.88
2770 11.1 3500 366 9.56
44.4 774 0.3 250 13 18.77 83℃
1066 0.6 500 27 18.77
1315 1.1 750 49 15.36
1526 1.6 1000 71 14.08
1700 2.1 1250 93 13.41
1870 2.7 1500 120 12.51
2010 3.3 1750 147 11.94
2148 4 2000 178 11.26
2390 5.3 2500 235 10.62
2620 7 3000 311 9.65
2837 8.9 3500 395 8.86
3012 10.7 4000 475 8.42
3190 12.8 4500 568 7.92
3370 15.2 5000 675 7.41
3520 17.3 5650 768 7.36
3540 18.1 5900 804 7.34
50 760 0.3 250 15 16.67 120℃
1060 0.6 500 30 16.67
1305 1 750 50 15
1515 1.4 1000 70 14.29
1710 1.9 1250 95 13.16
1860 2.4 1500 120 12.5
1995 3 1750 150 11.67
2140 3.5 2000 175 11.43
2365 4.8 2500 240 10.42
2625 6.4 3000 320 9.38
2815 7.8 3500 390 8.97
3025 9.8 4000 490 8.16
3170 11.3 4500 565 7.96
3355 13.5 5000 675 7.41
3505 15.5 5500 775 7.1
3660 18.1 6000 905 6.63
3860 21.6 7100 1080 6.57
28*9.2 29 678 0.4 250 12 21.55 55℃
918 0.9 500 26 19.16
1105 1.4 750 41 18.47
1290 2.1 1000 61 16.42
1440 2.8 1250 81 15.39
1579 3.6 1500 104 14.37
1702 4.5 1750 131 13.41
1807 5.4 2000 157 12.77
2015 7.4 2500 215 11.65
2210 9.6 3000 278 10.78
2380 12 3500 348 10.06
33 664 0.4 250 13 18.94 66℃
924 0.8 500 26 18.94
1127 1.3 750 43 17.48
1290 1.9 1000 63 15.95
1435 2.5 1250 83 15.15
1576 3.2 1500 106 14.2
1750 4 1750 132 13.26
1838 5 2000 165 12.12
2030 6.7 2500 221 11.31
2225 8.7 3000 287 10.45
2404 11 3500 363 9.64
2640 14.8 4300 488 8.8
44.4 670 0.3 250 13 18.77 129℃
922 0.6 500 27 18.77
1115 1 750 44 16.89
1300 1.5 1000 67 15.02
1460 2 1250 89 14.08
1593 2.5 1500 111 13.51
1708 3 1750 133 13.14
1826 3.7 2000 164 12.17
2045 5.1 2500 226 11.04
2225 6.6 3000 293 10.24
2408 8.3 3500 369 9.5
2570 10.3 4000 457 8.75
2730 12.2 4500 542 8.31
2870 14.4 5000 639 7.82
3007 16.9 5500 750 7.33
3140 20 6000 888 6.76
3257 22.7 6600 1008 6.55
3280 24.3 7000 1079 6.49
50 67.2 0.3 250 15 16.67 140℃
912 0.5 500 25 20
1112 0.9 750 45 16.67
1285 1.3 1000 65 15.38
1446 1.7 1250 85 14.71
1570 2.2 1500 110 13.64
1715 2.8 1750 140 12.5
1836 3.4 2000 170 11.76
2045 4.6 2500 230 10.87
2229 5.9 3000 295 10.17
2424 7.7 3500 385 9.09
2577 9.2 4000 460 8.7
2723 11 4500 550 8.18
2857 12.8 5000 640 7.81
2980 15 5500 750 7.33
3112 17.4 6000 870 6.9
3235 20 6500 1000 6.5
3574 27 7800 1350 5.78
3596 28.8 8300 1440 5.76
29*9.5 22.2 657 0.5 250 11 22.52 43℃
911 1.1 500 24 20.48
1090 1.8 750 40 18.77
1245 2.6 1000 58 17.33
1383 3.5 1250 78 16.09
1511 4.6 1500 102 14.69
1615 5.7 1750 127 13.83
1736 7 2000 155 12.87
1860 8.6 2410 191 12.62
25 664 0.5 250 13 20 56℃
903 1 500 25 20
1084 1.6 750 40 18.75
1233 2.3 1000 58 17.39
1388 3.2 1250 80 15.63
1494 4 1500 100 15
1606 4.9 1750 123 14.29
1710 6 2000 150 13.33
1908 8.3 2500 208 12.05
2070 10.6 3000 265 11.32

KV135

Stator Diameter 81mm Rotor Diameter 86.8mm
Stator Thickness 8mm Body Length 23.9mm
No.of Stator Slots 36 Max Lipo Cell 6-12S
No.of Rotor Poles 42 ESC 40-60A
Motor Kv 135 Recommended Prop(inch) 8-12S Lipo 24*8/6-10S Lipo 26*8.5/6-8S Lipo 28*9.2/29*9.5
No-load current 0.7A/10V Recommended single take-off Weight ≤2200g
Motor Resistance 123mΩ
Max Continuous Current 30A/30s
Max Continuous Power 1200W
Weight

230g




Prop(inch) Voltage(V) PRM Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
26*8.5 22.2 774 0.6 250 13 18.77 39℃
1050 1.2 500 27 18.77
1305 2.1 750 47 16.09
1500 3 1000 67 15.02
1660 4 1250 89 14.08
1830 5 1500 111 13.51
1950 6.1 1750 135 12.92
2087 7.5 2000 167 12.01
2330 10.3 2550 229 11.15
26 262 0.5 250 13 19.23 50℃
1062 1.1 500 29 17.48
1295 1.8 750 47 16.03
1492 2.6 1000 68 14.79
1646 3.3 1250 86 14.57
1810 4.3 1500 112 13.42
1962 5.4 1750 140 12.46
2086 6.5 2000 169 11.83
2336 9 2500 234 10.68
2555 11.7 3000 304 9.86
2665 13.2 3400 343 9.91
29 766 0.6 250 17 14.37 56℃
1069 1 500 29 17.24
1281 1.6 750 46 16.16
1495 2.4 1000 70 14.37
1653 3.1 1250 90 13.9
1830 4 1500 116 12.93
1958 4.9 1750 142 12.32
2092 5.9 2000 171 11.69
2340 8 2500 232 10.78
2565 10.6 3000 307 9.76
2760 13.3 3500 386 9.07
2920 16 4050 464 8.73
33 781 0.4 250 13 18.94 68℃
1077 0.9 500 30 16.84
1310 1.5 750 50 15.15
1510 2.1 1000 69 14.43
1685 2.8 1250 92 13.53
1805 3.5 1500 116 12.99
1968 4.4 1750 145 12.05
2125 5.4 2000 178 11.22
2380 7.4 2500 244 10.24
2588 9.5 3000 314 9.57
2780 11.8 3500 389 8.99
2980 14.5 4000 479 8.36
3144 17.2 4500 568 7.93
3225 19.3 4950 637 7.77
28*9.2 22.2 665 0.5 250 11 22.52 50℃
925 1.1 500 24 20.48
1119 1.8 750 40 18.77
1295 2.7 1000 60 16.68
1443 3.7 1250 82 15.22
1580 4.8 1500 107 14.08
1720 6 1750 133 13.14
1831 7.2 2000 160 12.51
2040 10 2500 222 11.26
2240 13.2 3100 293 10.58
26 675 0.5 250 13 19.23 63℃
908 1 500 26 19.23
1122 1.6 750 42 18.03
1303 2.4 1000 62 16.03
1449 3.2 1250 83 15.02
1585 4.1 1500 107 14.07
1716 5.1 1750 133 13.2
1825 6.1 2000 159 12.61
2042 8.5 2500 221 11.31
2249 11.2 3000 291 10.3
2412 14.2 3500 369 9.48
2550 16.8 4050 437 9.27
29 657 0.5 250 15 17.24 73℃
910 0.9 500 26 19.16
1126 1.5 750 44 17.24
1290 2.1 1000 61 16.42
1450 2.9 1250 84 14.86
1592 3.7 1500 107 13.98
1710 4.6 1750 133 13.12
1820 5.5 2000 160 12.54
2034 7.6 2500 220 11.34
2237 10 3000 290 10.34
2400 12.8 3500 371 9.43
2555 15 4000 435 9.2
2710 18.4 4500 534 8.43
2770 19.7 4800 571 8.4
33 670 0.4 250 13 18.94 103℃
935 0.8 500 26 18.94
1126 1.3 750 43 17.48
1288 1.9 1000 63 15.95
1444 2.6 1250 86 14.57
1585 3.3 1500 109 13.77
1714 4.2 1750 139 12.63
1825 5 2000 165 12.12
2036 6.8 2500 224 11.14
2200 8.8 3000 290 10.33
2405 11.2 3500 370 9.47
2545 13.6 4000 449 8.91
2710 16.2 4500 535 8.42
2864 19.7 5000 650 7.69
3010 23.5 5700 776 7.35
3060 24.1 5800 795 7.29
24*8 44.4 889 0.4 250 18 14.08 90℃
1250 0.7 500 31 16.09
1535 1.2 750 53 14.08
1760 1.7 1000 75 13.25
1980 2.3 1250 102 12.24
2156 3 1500 133 11.26
2326 3.6 1750 160 10.95
2480 4.4 2000 195 10.24
2770 6 2500 266 9.38
3000 7.7 3000 342 8.78
3226 9.5 3500 422 8.3
2477 11.9 4000 528 7.57
3633 13.7 4500 608 7.4
3817 16.1 5000 715 6.99
4000 18.3 5500 813 6.77
4180 21.4 6000 950 6.31
4340 24 6500 1066 6.1
4350 24.2 6600 1074 6.14
29*9.5 22.2 655 0.5 250 11 22.52 60℃
914 1.2 500 27 18.77
1095 1.9 750 42 17.78
1247 2.8 1000 62 16.09
1381 3.7 1250 82 15.22
1503 4.7 1500 104 14.38
1623 5.8 1750 129 13.59
1720 7 2000 155 12.87
1941 9.9 2500 220 11.38
2100 12.8 3000 284 10.56
2205 14.6 3380 324 10.43
25 655 0.4 250 10 25 70℃
903 1 500 25 20
1088 1.7 750 43 17.65
1243 2.4 1000 60 16.67
1376 3.3 1250 83 15.15
1513 4.3 1500 108 13.95
1613 5.3 1750 133 13.21
1740 6.3 2000 158 12.7
1938 8.8 2500 220 11.36
2124 11.5 3000 288 10.43
2270 14.6 3500 365 9.59
2413 17.6 4180 440 9.5

KV170

Stator Diameter 81mm Rotor Diameter 86.8mm
Stator Thickness 8mm Body Length 23.9mm
No.of Stator Slots 36 Max Lipo Cell 6S
No.of Rotor Poles 42 ESC 40-60A
Motor Kv 170 Recommended Prop(inch) 26*8.5/28*9.2
No-load current 1.0A/10V Recommended single take-off Weight ≤2500g( 26*8.5 )/ ≤3000g( 28*9.2 )
Motor Resistance 79mΩ
Max Continuous Current 35A/30s
Max Continuous Power 875W
Weight

230g




Prop(inch) Voltage(V) PRM Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
26*8.5 22.2 770 0.6 250 13 18.77 54℃
1078 1.4 500 31 16.09
1300 2.2 750 49 15.36
1491 3.1 1000 69 14.53
1674 4.2 1250 93 13.41
1842 5.3 1500 118 12.75
1983 6.6 1750 147 11.94
2098 7.8 2000 173 11.55
2360 10.8 2500 240 10.43
2574 14.1 3000 313 9.58
2776 17.4 3500 386 9.06
2854 19.4 3850 431 8.94
25 779 0.6 250 15 16.67 68℃
1073 1.2 500 30 16.67
1318 2 750 50 15
1496 2.8 1000 70 14.29
1686 3.9 1250 98 12.82
1823 4.8 1500 120 12.5
1964 5.8 1750 145 12.07
2100 7 2000 175 11.43
2340 9.6 2500 240 10.42
2555 12.3 3000 308 9.76
2782 15.9 3500 398 8.81
2930 19 4000 475 8.42
3100 23.1 4650 578 8.05
3150 23.6 4800 590 8.14
28*9.2 22.2 676 0.6 250 13 18.77 64℃
926 1.3 500 29 17.33
1126 2.1 750 47 16.09
1292 3 1000 67 15.02
1440 4 1250 89 14.08
1570 5.1 1500 113 13.25
1690 6.2 1750 138 12.71
1820 7.5 2000 167 12.01
2020 10.2 2500 226 11.04
2210 13.2 3000 293 10.24
2390 17 3500 377 9.27
2544 20.5 4000 455 8.79
2680 24.5 4700 544 8.64
25 670 0.5 250 13 20 90℃
930 1.1 500 28 18.18
1123 1.8 750 45 16.67
1295 2.7 1000 68 14.81
1440 3.5 1250 88 14.29
1590 4.6 1500 115 13.04
1706 5.6 1750 140 12.5
1818 6.6 2000 165 12.12
2028 9.2 2500 230 10.87
2216 11.8 3000 295 10.17
2400 15 3500 375 9.33
2560 18.7 4000 468 8.56
2709 22.2 4500 555 8.11
2856 26.6 5000 665 7.52
2920 28.5 5350 713 7.51
2955 29.3 5650 733 7.71

KV200

Stator Diameter 81mm Rotor Diameter 86.8mm
Stator Thickness 8mm Body Length 23.9mm
No.of Stator Slots 36 Max Lipo Cell 6S
No.of Rotor Poles 42 ESC 60A
Motor Kv 200 Recommended Prop(inch) 24*8/26*8.5/28*9.2
No-load current 1.1A/10V Recommended single take-off Weight ≤2200g( 24*8 )/ ≤2700g( 26*8.5 ) / ≤3200g( 28*9.2 )
Motor Resistance 55mΩ
Max Continuous Current 40A/30s
Max Continuous Power 1000W
Weight

232g




Prop(inch) Voltage(V) PRM Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
28*9.2 22.2 873 0.7 250 16 16.09 51℃
1251 1.5 500 33 15.02
1510 2.4 750 53 14.08
1733 3.4 1000 75 13.25
1941 4.6 1250 102 12.24
2112 5.8 1500 129 11.65
2282 7.1 1750 158 11.1
2461 8.7 2000 193 10.36
2729 11.8 2500 262 9.54
2990 15.5 3000 344 8.72
3194 19.2 3500 426 8.21
3401 23.5 4000 522 7.67
3530 25.9 4300 575 7.48
25 885 0.6 250 15 16.67 64℃
1246 1.3 500 33 15.38
1526 2.2 750 55 13.64
1750 3.1 1000 78 12.9
1947 4.1 1250 103 12.2
2127 5.3 1500 133 11.32
2300 6.5 1750 163 10.77
2440 7.7 2000 193 10.39
2730 10.7 2500 268 9.35
2963 13.8 3000 345 8.7
3204 17.4 3500 435 8.05
3428 21.1 4000 528 7.58
3628 25.4 4500 635 7.09
3800 30 5000 750 6.67
3840 31 5250 775 6.77
24*8 22.2 774 0.6 250 13 18.77 81℃
1075 1.4 500 31 16.09
1295 2.3 750 51 14.69
1510 3.3 1000 73 13.65
1659 4.3 1250 95 13.09
1807 5.4 1500 120 12.51
1950 6.6 1750 147 11.94
2082 8 2000 178 11.26
2340 11.2 2500 249 10.05
2544 14.2 3000 315 9.52
2737 18.1 3500 402 8.71
2915 22.1 4000 491 8.15
3125 26.8 4500 595 7.56
3280 32.1 5180 713 7.27
3311 32.8 5280 728 7.25
25 765 0.5 250 13 20 101℃
1052 1.2 500 30 16.67
1302 2 750 50 15
1484 2.9 1000 73 13.79
1657 3.8 1250 95 13.16
1829 5 1500 125 12
1962 6.1 1750 153 11.48
2094 7.3 2000 183 10.96
2320 9.8 2500 245 10.2
2559 13 3000 325 9.23
2755 16.3 3500 408 8.59
2940 20.3 4000 508 7.88
3100 23.8 4500 595 7.56
3285 28.5 5000 713 7.02
3474 33.6 5500 840 6.55
3557 37.7 5900 943 6.26
3610 39.7 6300 993 6.35
26*8.5 22.2 665 0.6 250 13 18.77 113℃
935 1.3 500 29 17.33
1130 2.1 750 47 16.09
1294 3 1000 67 15.02
1435 4 1250 89 14.08
1583 5.2 1500 115 12.99
1705 6.5 1750 144 12.13
1818 7.7 2000 171 11.7
2035 10.7 2500 238 10.52
2220 14.1 3000 313 9.58
2390 17.5 3500 389 9.01
2560 22.1 4000 491 8.15
2690 26.1 4500 579 7.77
2870 31.9 5000 708 7.06
2975 37.5 5500 833 6.61
3000 38.7 5700 859 6.63
3054 39.7 6050 881 6.86
25 665 0.5 250 13 20 145℃
932 1.2 500 30 16.67
1130 1.9 750 48 15.79
1282 2.7 1000 68 14.81
1444 3.7 1250 93 13.51
1592 4.8 1500 120 12.5
1720 5.8 1750 145 12.07
1830 6.9 2000 173 11.59
2020 9.8 2500 245 10.2
2237 12.8 3000 320 9.38
2400 16 3500 400 8.75
2565 19.9 4000 498 8.04
2700 23.4 4500 585 7.69
2900 28.6 5000 715 6.99
2990 33.3 5500 833 6.61
3110 39.4 6000 985 6.09
3212 44.8 6600 1120 5.89
3340 47.6 7200 1190 6.05

KV100

Stator Diameter 81mm Rotor Diameter 86.8mm
Stator Thickness 8mm Body Length 23.9mm
No.of Stator Slots 36 Max Lipo Cell 6-12S
No.of Rotor Poles 42 ESC 40-60A
Motor Kv 100 Recommended Prop(inch) 8-12S Lipo 26*8.5/8-10S Lipo 28*9.2/6-8S Lipo 29*9.5
No-load current 0.6A/10V Recommended single take-off Weight ≤1750g
Motor Resistance 181mΩ
Max Continuous Current 25A/180s
Max Continuous Power 1100W
Weight

230g





Prop(inch) Voltage(V) PRM Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
26*8.5 29 790 0.5 250 15 17.24 45℃
1077 1 500 29 17.24
1315 1.5 750 44 17.24
1526 2.2 1000 64 15.67
1680 3 1250 87 14.37
1850 3.9 1500 113 13.26
1980 4.7 1750 136 12.84
2150 5.9 2000 171 11.69
2390 8 2500 232 10.78
2490 9.2 2790 267 10.46
33 782 0.4 250 13 18.94 52℃
1075 0.8 500 26 18.94
1323 1.4 750 46 16.23
1526 2 1000 66 15.15
1680 2.6 1250 86 14.57
1830 3.3 1500 109 13.77
1980 4.2 1750 139 12.63
2140 5.1 2000 168 11.88
2390 7.1 2500 234 10.67
3610 9.2 3000 304 9.88
2770 11.1 3500 366 9.56
44.4 774 0.3 250 13 18.77 83℃
1066 0.6 500 27 18.77
1315 1.1 750 49 15.36
1526 1.6 1000 71 14.08
1700 2.1 1250 93 13.41
1870 2.7 1500 120 12.51
2010 3.3 1750 147 11.94
2148 4 2000 178 11.26
2390 5.3 2500 235 10.62
2620 7 3000 311 9.65
2837 8.9 3500 395 8.86
3012 10.7 4000 475 8.42
3190 12.8 4500 568 7.92
3370 15.2 5000 675 7.41
3520 17.3 5650 768 7.36
3540 18.1 5900 804 7.34
50 760 0.3 250 15 16.67 120℃
1060 0.6 500 30 16.67
1305 1 750 50 15
1515 1.4 1000 70 14.29
1710 1.9 1250 95 13.16
1860 2.4 1500 120 12.5
1995 3 1750 150 11.67
2140 3.5 2000 175 11.43
2365 4.8 2500 240 10.42
2625 6.4 3000 320 9.38
2815 7.8 3500 390 8.97
3025 9.8 4000 490 8.16
3170 11.3 4500 565 7.96
3355 13.5 5000 675 7.41
3505 15.5 5500 775 7.1
3660 18.1 6000 905 6.63
3860 21.6 7100 1080 6.57
28*9.2 29 678 0.4 250 12 21.55 55℃
918 0.9 500 26 19.16
1105 1.4 750 41 18.47
1290 2.1 1000 61 16.42
1440 2.8 1250 81 15.39
1579 3.6 1500 104 14.37
1702 4.5 1750 131 13.41
1807 5.4 2000 157 12.77
2015 7.4 2500 215 11.65
2210 9.6 3000 278 10.78
2380 12 3500 348 10.06
33 664 0.4 250 13 18.94 66℃
924 0.8 500 26 18.94
1127 1.3 750 43 17.48
1290 1.9 1000 63 15.95
1435 2.5 1250 83 15.15
1576 3.2 1500 106 14.2
1750 4 1750 132 13.26
1838 5 2000 165 12.12
2030 6.7 2500 221 11.31
2225 8.7 3000 287 10.45
2404 11 3500 363 9.64
2640 14.8 4300 488 8.8
44.4 670 0.3 250 13 18.77 129℃
922 0.6 500 27 18.77
1115 1 750 44 16.89
1300 1.5 1000 67 15.02
1460 2 1250 89 14.08
1593 2.5 1500 111 13.51
1708 3 1750 133 13.14
1826 3.7 2000 164 12.17
2045 5.1 2500 226 11.04
2225 6.6 3000 293 10.24
2408 8.3 3500 369 9.5
2570 10.3 4000 457 8.75
2730 12.2 4500 542 8.31
2870 14.4 5000 639 7.82
3007 16.9 5500 750 7.33
3140 20 6000 888 6.76
3257 22.7 6600 1008 6.55
3280 24.3 7000 1079 6.49
50 67.2 0.3 250 15 16.67 140℃
912 0.5 500 25 20
1112 0.9 750 45 16.67
1285 1.3 1000 65 15.38
1446 1.7 1250 85 14.71
1570 2.2 1500 110 13.64
1715 2.8 1750 140 12.5
1836 3.4 2000 170 11.76
2045 4.6 2500 230 10.87
2229 5.9 3000 295 10.17
2424 7.7 3500 385 9.09
2577 9.2 4000 460 8.7
2723 11 4500 550 8.18
2857 12.8 5000 640 7.81
2980 15 5500 750 7.33
3112 17.4 6000 870 6.9
3235 20 6500 1000 6.5
3574 27 7800 1350 5.78
3596 28.8 8300 1440 5.76
29*9.5 22.2 657 0.5 250 11 22.52 43℃
911 1.1 500 24 20.48
1090 1.8 750 40 18.77
1245 2.6 1000 58 17.33
1383 3.5 1250 78 16.09
1511 4.6 1500 102 14.69
1615 5.7 1750 127 13.83
1736 7 2000 155 12.87
1860 8.6 2410 191 12.62
25 664 0.5 250 13 20 56℃
903 1 500 25 20
1084 1.6 750 40 18.75
1233 2.3 1000 58 17.39
1388 3.2 1250 80 15.63
1494 4 1500 100 15
1606 4.9 1750 123 14.29
1710 6 2000 150 13.33
1908 8.3 2500 208 12.05
2070 10.6 3000 265 11.32

KV135

Stator Diameter 81mm Rotor Diameter 86.8mm
Stator Thickness 8mm Body Length 23.9mm
No.of Stator Slots 36 Max Lipo Cell 6-12S
No.of Rotor Poles 42 ESC 40-60A
Motor Kv 135 Recommended Prop(inch) 8-12S Lipo 24*8/6-10S Lipo 26*8.5/6-8S Lipo 28*9.2/29*9.5
No-load current 0.7A/10V Recommended single take-off Weight ≤2200g
Motor Resistance 123mΩ
Max Continuous Current 30A/30s
Max Continuous Power 1200W
Weight

230g




Prop(inch) Voltage(V) PRM Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
26*8.5 22.2 774 0.6 250 13 18.77 39℃
1050 1.2 500 27 18.77
1305 2.1 750 47 16.09
1500 3 1000 67 15.02
1660 4 1250 89 14.08
1830 5 1500 111 13.51
1950 6.1 1750 135 12.92
2087 7.5 2000 167 12.01
2330 10.3 2550 229 11.15
26 262 0.5 250 13 19.23 50℃
1062 1.1 500 29 17.48
1295 1.8 750 47 16.03
1492 2.6 1000 68 14.79
1646 3.3 1250 86 14.57
1810 4.3 1500 112 13.42
1962 5.4 1750 140 12.46
2086 6.5 2000 169 11.83
2336 9 2500 234 10.68
2555 11.7 3000 304 9.86
2665 13.2 3400 343 9.91
29 766 0.6 250 17 14.37 56℃
1069 1 500 29 17.24
1281 1.6 750 46 16.16
1495 2.4 1000 70 14.37
1653 3.1 1250 90 13.9
1830 4 1500 116 12.93
1958 4.9 1750 142 12.32
2092 5.9 2000 171 11.69
2340 8 2500 232 10.78
2565 10.6 3000 307 9.76
2760 13.3 3500 386 9.07
2920 16 4050 464 8.73
33 781 0.4 250 13 18.94 68℃
1077 0.9 500 30 16.84
1310 1.5 750 50 15.15
1510 2.1 1000 69 14.43
1685 2.8 1250 92 13.53
1805 3.5 1500 116 12.99
1968 4.4 1750 145 12.05
2125 5.4 2000 178 11.22
2380 7.4 2500 244 10.24
2588 9.5 3000 314 9.57
2780 11.8 3500 389 8.99
2980 14.5 4000 479 8.36
3144 17.2 4500 568 7.93
3225 19.3 4950 637 7.77
28*9.2 22.2 665 0.5 250 11 22.52 50℃
925 1.1 500 24 20.48
1119 1.8 750 40 18.77
1295 2.7 1000 60 16.68
1443 3.7 1250 82 15.22
1580 4.8 1500 107 14.08
1720 6 1750 133 13.14
1831 7.2 2000 160 12.51
2040 10 2500 222 11.26
2240 13.2 3100 293 10.58
26 675 0.5 250 13 19.23 63℃
908 1 500 26 19.23
1122 1.6 750 42 18.03
1303 2.4 1000 62 16.03
1449 3.2 1250 83 15.02
1585 4.1 1500 107 14.07
1716 5.1 1750 133 13.2
1825 6.1 2000 159 12.61
2042 8.5 2500 221 11.31
2249 11.2 3000 291 10.3
2412 14.2 3500 369 9.48
2550 16.8 4050 437 9.27
29 657 0.5 250 15 17.24 73℃
910 0.9 500 26 19.16
1126 1.5 750 44 17.24
1290 2.1 1000 61 16.42
1450 2.9 1250 84 14.86
1592 3.7 1500 107 13.98
1710 4.6 1750 133 13.12
1820 5.5 2000 160 12.54
2034 7.6 2500 220 11.34
2237 10 3000 290 10.34
2400 12.8 3500 371 9.43
2555 15 4000 435 9.2
2710 18.4 4500 534 8.43
2770 19.7 4800 571 8.4
33 670 0.4 250 13 18.94 103℃
935 0.8 500 26 18.94
1126 1.3 750 43 17.48
1288 1.9 1000 63 15.95
1444 2.6 1250 86 14.57
1585 3.3 1500 109 13.77
1714 4.2 1750 139 12.63
1825 5 2000 165 12.12
2036 6.8 2500 224 11.14
2200 8.8 3000 290 10.33
2405 11.2 3500 370 9.47
2545 13.6 4000 449 8.91
2710 16.2 4500 535 8.42
2864 19.7 5000 650 7.69
3010 23.5 5700 776 7.35
3060 24.1 5800 795 7.29
24*8 44.4 889 0.4 250 18 14.08 90℃
1250 0.7 500 31 16.09
1535 1.2 750 53 14.08
1760 1.7 1000 75 13.25
1980 2.3 1250 102 12.24
2156 3 1500 133 11.26
2326 3.6 1750 160 10.95
2480 4.4 2000 195 10.24
2770 6 2500 266 9.38
3000 7.7 3000 342 8.78
3226 9.5 3500 422 8.3
2477 11.9 4000 528 7.57
3633 13.7 4500 608 7.4
3817 16.1 5000 715 6.99
4000 18.3 5500 813 6.77
4180 21.4 6000 950 6.31
4340 24 6500 1066 6.1
4350 24.2 6600 1074 6.14
29*9.5 22.2 655 0.5 250 11 22.52 60℃
914 1.2 500 27 18.77
1095 1.9 750 42 17.78
1247 2.8 1000 62 16.09
1381 3.7 1250 82 15.22
1503 4.7 1500 104 14.38
1623 5.8 1750 129 13.59
1720 7 2000 155 12.87
1941 9.9 2500 220 11.38
2100 12.8 3000 284 10.56
2205 14.6 3380 324 10.43
25 655 0.4 250 10 25 70℃
903 1 500 25 20
1088 1.7 750 43 17.65
1243 2.4 1000 60 16.67
1376 3.3 1250 83 15.15
1513 4.3 1500 108 13.95
1613 5.3 1750 133 13.21
1740 6.3 2000 158 12.7
1938 8.8 2500 220 11.36
2124 11.5 3000 288 10.43
2270 14.6 3500 365 9.59
2413 17.6 4180 440 9.5

KV170

Stator Diameter 81mm Rotor Diameter 86.8mm
Stator Thickness 8mm Body Length 23.9mm
No.of Stator Slots 36 Max Lipo Cell 6S
No.of Rotor Poles 42 ESC 40-60A
Motor Kv 170 Recommended Prop(inch) 26*8.5/28*9.2
No-load current 1.0A/10V Recommended single take-off Weight ≤2500g( 26*8.5 )/ ≤3000g( 28*9.2 )
Motor Resistance 79mΩ
Max Continuous Current 35A/30s
Max Continuous Power 875W
Weight

230g




Prop(inch) Voltage(V) PRM Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
26*8.5 22.2 770 0.6 250 13 18.77 54℃
1078 1.4 500 31 16.09
1300 2.2 750 49 15.36
1491 3.1 1000 69 14.53
1674 4.2 1250 93 13.41
1842 5.3 1500 118 12.75
1983 6.6 1750 147 11.94
2098 7.8 2000 173 11.55
2360 10.8 2500 240 10.43
2574 14.1 3000 313 9.58
2776 17.4 3500 386 9.06
2854 19.4 3850 431 8.94
25 779 0.6 250 15 16.67 68℃
1073 1.2 500 30 16.67
1318 2 750 50 15
1496 2.8 1000 70 14.29
1686 3.9 1250 98 12.82
1823 4.8 1500 120 12.5
1964 5.8 1750 145 12.07
2100 7 2000 175 11.43
2340 9.6 2500 240 10.42
2555 12.3 3000 308 9.76
2782 15.9 3500 398 8.81
2930 19 4000 475 8.42
3100 23.1 4650 578 8.05
3150 23.6 4800 590 8.14
28*9.2 22.2 676 0.6 250 13 18.77 64℃
926 1.3 500 29 17.33
1126 2.1 750 47 16.09
1292 3 1000 67 15.02
1440 4 1250 89 14.08
1570 5.1 1500 113 13.25
1690 6.2 1750 138 12.71
1820 7.5 2000 167 12.01
2020 10.2 2500 226 11.04
2210 13.2 3000 293 10.24
2390 17 3500 377 9.27
2544 20.5 4000 455 8.79
2680 24.5 4700 544 8.64
25 670 0.5 250 13 20 90℃
930 1.1 500 28 18.18
1123 1.8 750 45 16.67
1295 2.7 1000 68 14.81
1440 3.5 1250 88 14.29
1590 4.6 1500 115 13.04
1706 5.6 1750 140 12.5
1818 6.6 2000 165 12.12
2028 9.2 2500 230 10.87
2216 11.8 3000 295 10.17
2400 15 3500 375 9.33
2560 18.7 4000 468 8.56
2709 22.2 4500 555 8.11
2856 26.6 5000 665 7.52
2920 28.5 5350 713 7.51
2955 29.3 5650 733 7.71

KV200

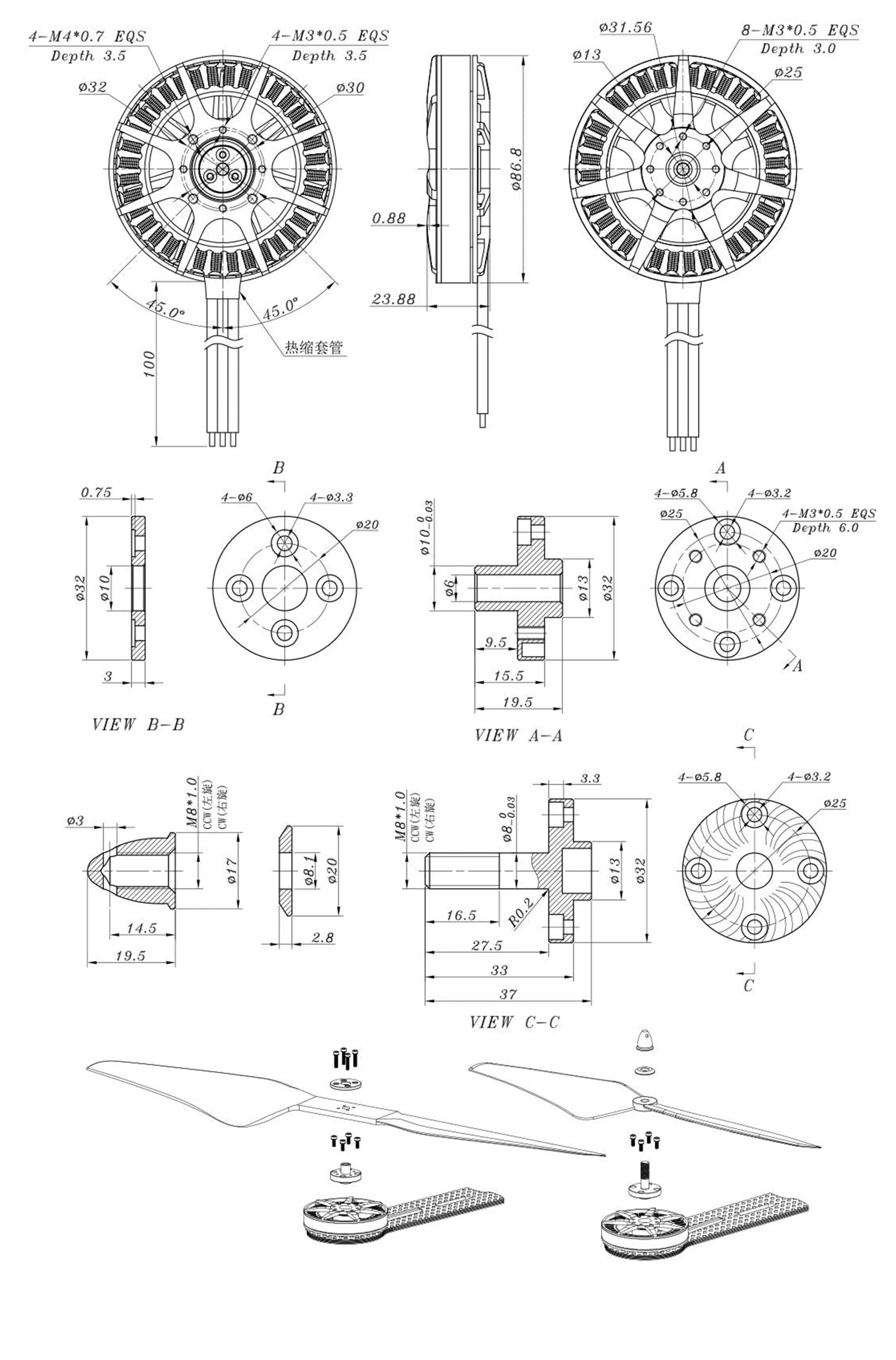

Stator Diameter 81mm Rotor Diameter 86.8mm
Stator Thickness 8mm Body Length 23.9mm
No.of Stator Slots 36 Max Lipo Cell 6S
No.of Rotor Poles 42 ESC 60A
Motor Kv 200 Recommended Prop(inch) 24*8/26*8.5/28*9.2
No-load current 1.1A/10V Recommended single take-off Weight ≤2200g( 24*8 )/ ≤2700g( 26*8.5 ) / ≤3200g( 28*9.2 )
Motor Resistance 55mΩ
Max Continuous Current 40A/30s
Max Continuous Power 1000W
Weight

232g




Prop(inch) Voltage(V) PRM Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
28*9.2 22.2 873 0.7 250 16 16.09 51℃
1251 1.5 500 33 15.02
1510 2.4 750 53 14.08
1733 3.4 1000 75 13.25
1941 4.6 1250 102 12.24
2112 5.8 1500 129 11.65
2282 7.1 1750 158 11.1
2461 8.7 2000 193 10.36
2729 11.8 2500 262 9.54
2990 15.5 3000 344 8.72
3194 19.2 3500 426 8.21
3401 23.5 4000 522 7.67
3530 25.9 4300 575 7.48
25 885 0.6 250 15 16.67 64℃
1246 1.3 500 33 15.38
1526 2.2 750 55 13.64
1750 3.1 1000 78 12.9
1947 4.1 1250 103 12.2
2127 5.3 1500 133 11.32
2300 6.5 1750 163 10.77
2440 7.7 2000 193 10.39
2730 10.7 2500 268 9.35
2963 13.8 3000 345 8.7
3204 17.4 3500 435 8.05
3428 21.1 4000 528 7.58
3628 25.4 4500 635 7.09
3800 30 5000 750 6.67
3840 31 5250 775 6.77
24*8 22.2 774 0.6 250 13 18.77 81℃
1075 1.4 500 31 16.09
1295 2.3 750 51 14.69
1510 3.3 1000 73 13.65
1659 4.3 1250 95 13.09
1807 5.4 1500 120 12.51
1950 6.6 1750 147 11.94
2082 8 2000 178 11.26
2340 11.2 2500 249 10.05
2544 14.2 3000 315 9.52
2737 18.1 3500 402 8.71
2915 22.1 4000 491 8.15
3125 26.8 4500 595 7.56
3280 32.1 5180 713 7.27
3311 32.8 5280 728 7.25
25 765 0.5 250 13 20 101℃
1052 1.2 500 30 16.67
1302 2 750 50 15
1484 2.9 1000 73 13.79
1657 3.8 1250 95 13.16
1829 5 1500 125 12
1962 6.1 1750 153 11.48
2094 7.3 2000 183 10.96
2320 9.8 2500 245 10.2
2559 13 3000 325 9.23
2755 16.3 3500 408 8.59
2940 20.3 4000 508 7.88
3100 23.8 4500 595 7.56
3285 28.5 5000 713 7.02
3474 33.6 5500 840 6.55
3557 37.7 5900 943 6.26
3610 39.7 6300 993 6.35
26*8.5 22.2 665 0.6 250 13 18.77 113℃
935 1.3 500 29 17.33
1130 2.1 750 47 16.09
1294 3 1000 67 15.02
1435 4 1250 89 14.08
1583 5.2 1500 115 12.99
1705 6.5 1750 144 12.13
1818 7.7 2000 171 11.7
2035 10.7 2500 238 10.52
2220 14.1 3000 313 9.58
2390 17.5 3500 389 9.01
2560 22.1 4000 491 8.15
2690 26.1 4500 579 7.77
2870 31.9 5000 708 7.06
2975 37.5 5500 833 6.61
3000 38.7 5700 859 6.63
3054 39.7 6050 881 6.86
25 665 0.5 250 13 20 145℃
932 1.2 500 30 16.67
1130 1.9 750 48 15.79
1282 2.7 1000 68 14.81
1444 3.7 1250 93 13.51
1592 4.8 1500 120 12.5
1720 5.8 1750 145 12.07
1830 6.9 2000 173 11.59
2020 9.8 2500 245 10.2
2237 12.8 3000 320 9.38
2400 16 3500 400 8.75
2565 19.9 4000 498 8.04
2700 23.4 4500 585 7.69
2900 28.6 5000 715 6.99
2990 33.3 5500 833 6.61
3110 39.4 6000 985 6.09
3212 44.8 6600 1120 5.89
3340 47.6 7200 1190 6.05

RETURNS POLICY

1. Please contact us first with following information before shipping back:
-order number/contact person
-reason for returning
After confirmed with us, return instructions will be emailed to you.

2. We may require restocking fee(shipping cost) for returned merchandise without any quality problems. A re-stocking fee does not apply to defective products.

3. All merchandise returned must be packaged well to protect it from shipping damage, and must be sent with a shipping method that provides tracking information. We can not be held responsible for damage that occurs in transit.
4. For merchandise that a customer wants to return for a refund, We requires that the item and its packaging be in un-used, "like new" condition with all original packaging, cabling, manuals, etc. included, or the return will be refused. Inspect your product carefully before shipping as any signs of wear or use will result in a refused product return.

Please also include a note about your personal Info and the problems.

1.Your order number/Contact person
2.Your Detailed shipping address
3.why you have to return it?
4.what do you need us to do?
5.which part is broken?
6.Any problem you can find so far with the returned item.





SHIPPING

After order placed, you will receive a confirmation email.Once your order is shipped, you will receive tracking number and link via email.We offer express shipping , battery shipping, drone shipping to all over the world.If you have special declare value, shipping company requirment, please email us: hi@insightfpv.com
