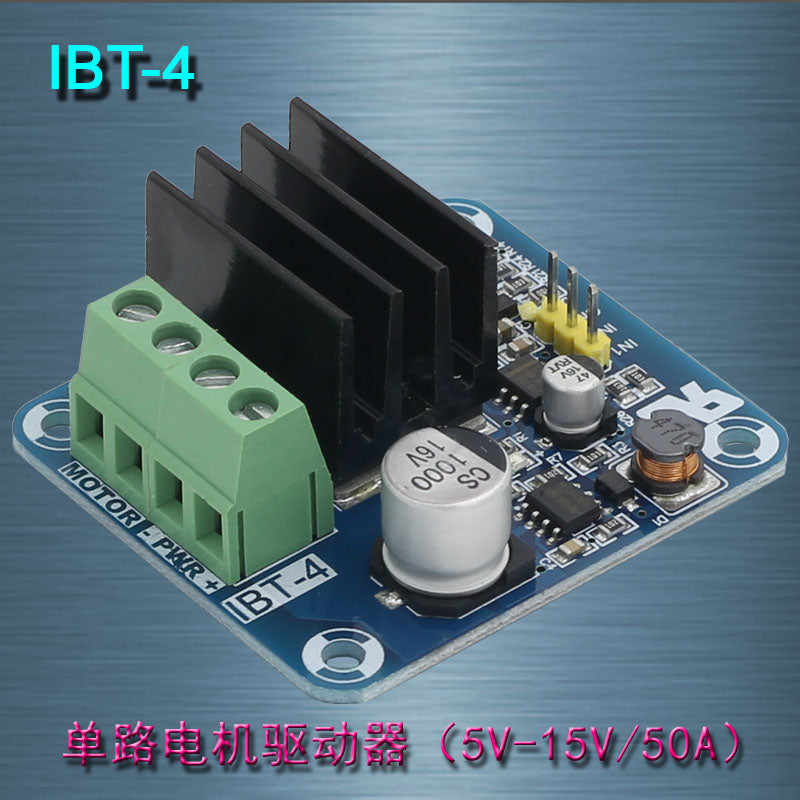

Free shipping,IBT-4 50A H-bridge High-power Motor Driver module/smart car

Available: In Stock
$10.00
  • Order within

Because BTS7960/BTS7970/BTN7960/BTN7970 these chips are designed for automotive electric doors and windows, suitable for short time use, the nominal 43A current is also a short time current, this setting value for the microcontroller to provide anti-pinch function with, not suitable for long time use. The control frequency is low and the internal resistance is large. IBT-4 is not suitable for frequent adjustment of hollow cup and PID, and frequent adjustment of PWM will lead to serious heating of BTS type chip.
Provide PID program
The driver uses a full-bridge driver chip and MOSFET composed of full H-bridge drive module, with very low internal resistance and high current characteristics. MOSFET H-bridge drive circuit, with strong drive and brake effect, signal isolation chip to effectively isolate the MCU and motor drive! High current 50A!
Translated with www.DeepL.com/Translator (free version)

Board features.
1、MOSFET high current (50A) H-bridge drive.
2、isolated from the microcontroller PWM signal, effective protection of the microcontroller.
3、able to achieve forward and reverse motor rotation, two PWM input 200kHZ frequency.
4、3.3V to 12V electric average can be used, fully compatible.
5、power supply voltage 5V to 15V.
6、The power supply indicator shows clearly and distinctly.

Because BTS7960/BTS7970/BTN7960/BTN7970 these chips are designed for automotive electric doors and windows, suitable for short time use, the nominal 43A current is also a short time current, this setting value for the microcontroller to provide anti-pinch function with, not suitable for long time use. The control frequency is low and the internal resistance is large. IBT-4 is not suitable for frequent adjustment of hollow cup and PID, and frequent adjustment of PWM will lead to serious heating of BTS type chip.
Provide PID program
The driver uses a full-bridge driver chip and MOSFET composed of full H-bridge drive module, with very low internal resistance and high current characteristics. MOSFET H-bridge drive circuit, with strong drive and brake effect, signal isolation chip to effectively isolate the MCU and motor drive! High current 50A!
Translated with www.DeepL.com/Translator (free version)

Board features.
1、MOSFET high current (50A) H-bridge drive.
2、isolated from the microcontroller PWM signal, effective protection of the microcontroller.
3、able to achieve forward and reverse motor rotation, two PWM input 200kHZ frequency.
4、3.3V to 12V electric average can be used, fully compatible.
5、power supply voltage 5V to 15V.
6、The power supply indicator shows clearly and distinctly.
