Map-02 is a lite version mapping camera with APS-C Exmor CMOS sensor and 24.3 MP. It is a good option for higher-quality mapping and survey.

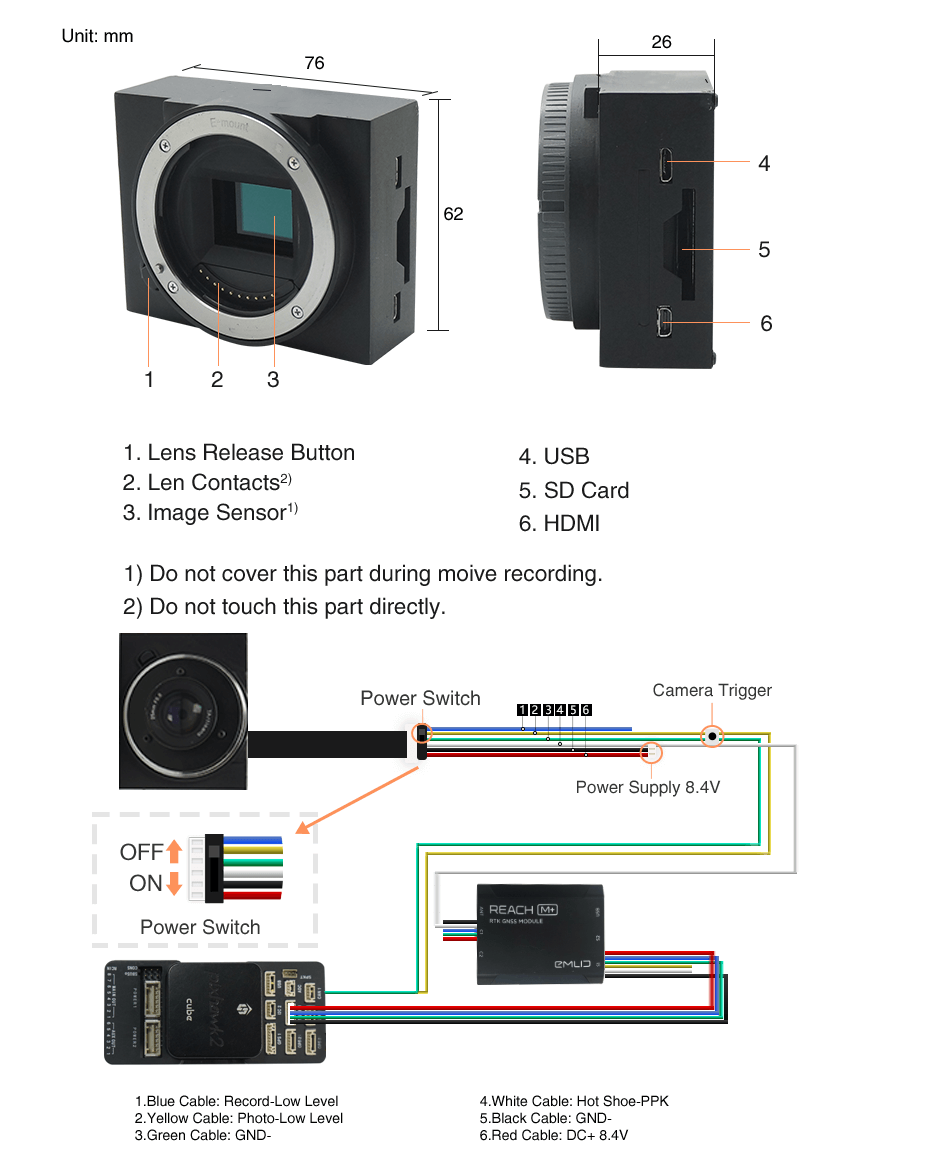

Map-02 is a very light and small mapping camera, which is only 112.5g. It is a good option for those customers who are looking for a small and light high-quality mapping camera. With the light weight and small size, Map-02 camera can be easily integrated into UAVs and airplanes to do mapping jobs. Shutter trigger of Map-02 camera is relay trigger, and also it could be connected with PPK system to ensure a centimeter-level accuracy of mapping and survey through a Hot Shoe signal. And it is an interchangeable-lens camera, so you can change the camera's lens according to your needs.
Whether for inspection projects or for photogrammetry, map-making, Map-02 camera is a good choice for companies wishing to offer high-quality surveys to clients.
Note: After power on, the shutter should be triggered twice to ensure that the camera can work  normally, or it will crash after 10s.

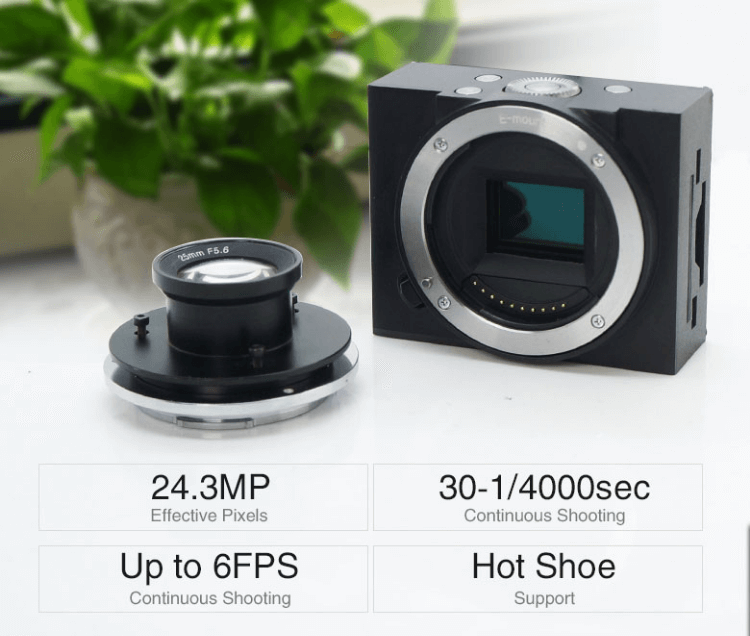

Specifications:
Sensor: Exmor APS HD CMOS sensor(23.5x15.6mm)
Number of Pixels(effective): 24.3MP
Lens compatibility: E-mount lenses
Hot Shoe Signal: supported
Shutter Trigger: relay(low level)
Shutter Speed: 30-1/4000sec
Continuous shooting：Up to 6FPS
Image sensor aspect ratio: 3:2,16:9
Image Format: JPEG,RAW,JPEG
Image Size (pixels):
3:2 L: 6000x4000(24M),M:4240x2832(12M),S:3008x2000(6M)
16:9 L: 6000x3376(20M),M:4240x2400(10M),S:3008x1688(5.1M)
EXPOSURE MODES：
Programmed AE(P)，Aperture priority(A), Shutter-speed priority(S), Manual(M)
Storage Card Type: SD/SDHC/SDXC Card/MS
Parameter Setting: Button/USBData Reading: SD card/USBInterface: HDMI USB2.0Power:8.4VSize:7.6x6.2x2.6cmWeight: 112.5g
