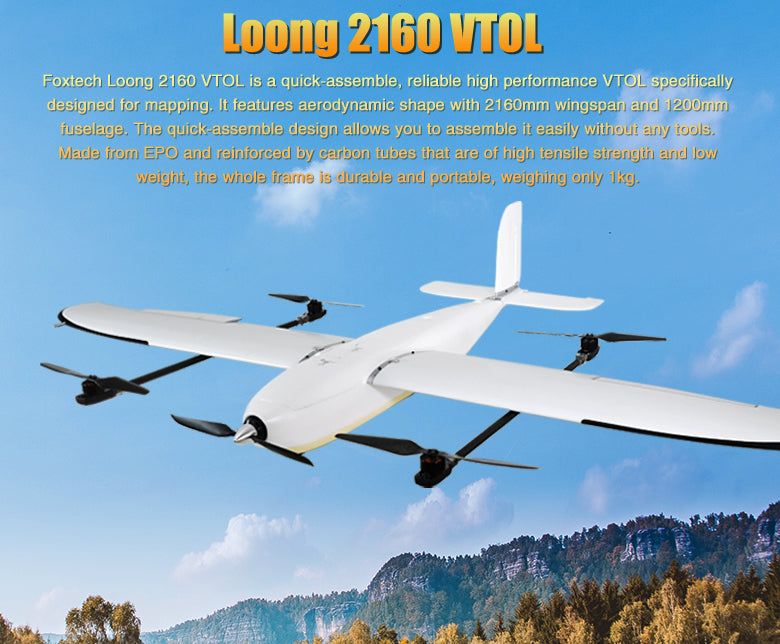

Loong 2160 VTOL is a quick-assembly, reliable, high-performance VTOL designed specifically for mapping. It has the advantage of being inexpensive and easy to use. It has an aerodynamic shape with 2160 mm wingspan and 1200 mm fuselage. Made of EPO and reinforced with carbon tubes, the frame has high tensile strength and light weight, so the whole frame is durable and portable, weighing only 1kg.
To strengthen the drone, the belly is protected by a wear-resistant PVC layer and the two wings are covered with a high-strength aluminum plastic film for protection.
The drone features a "4+1" motor concept with 4 VTOL motors and 1 fixed-wing motor, so it can perform space-saving VTOL and fast fixed-wing tasks simultaneously with a powerful propulsion system.
It can also withstand wind speeds from 5.5 m/sto 7.9 m/s (12.5 mph to 17.5 mph), making it capable of performing flight tasks in a variety of complex situations.
The ESC for fixed-wing mode is located on the outside for better heat dissipation. The metal buckle is placed in the position of the center of gravity to prevent loosening, and also makes it easier to find CG.
The camera cabin's clear cable layout helps configure the camera without tangling cables.
The biggest highlight of Loong is the quick mount, which allows you to mount the camera without tools, reducing the preparation time for each flight.
It can be loaded with a maximum of 1.3 kg of equipment, which is enough for almost all types of Foxtech task load cameras, some of which we recommend for mapping tasks: Map-01, Map-A7R, 3DM V3 or Argus V2 3D Modeling Oblique Camera.

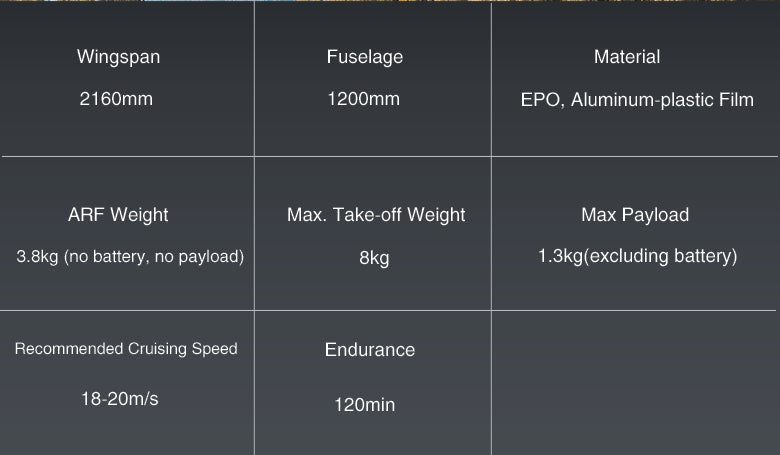

Specifications:
Version: Loong 2160 VTOL
Wingspan: 2160mm
Fuselage: 1200mm
Material: EPO, Aluminum-plastic Film, PVC
Frame Weight: 1kg
ARF Weight: 3.8kg (no battery, no payload)
Max. Take-off Weight: 8kg
Suggested Max Payload: 800g(excluding battery)
Endurance: 95min (1x 6S 25000mAh High Voltage Lipo Battery, no payload)
Recommended Cruising Speed: 18-20m/s
Stall Speed: 12-14m/s
Suggested Take-off Altitude: 0~3000m
Wind Resistance: 5.5m/s-7.9m/s(12.5mph-17.5mph)
Take-off/Landing: VTOL
Working Voltage: 24V
Working Temperature: -10℃-40℃
Carrying Case: 125cm*34cm*34cm
