INSIGHT MD-250 VTOL
- Accessories, AIR, Battery, Carbon fiber, charger, CUAV, Date Link, dji, DLE, Drill, drone, ESC, F15, FPV, Gasoline, Generator, Generator for Drone, gimbal camera, hexacopter, Hot Shoe, light, LiPo, M1500, M300, mapping, mapping camera, MN1010, MN1015, MN501-S, MN505-S, MN601-S, MN605-S, MN701-S, MN705-S, MN801-S, MN805-S, Module, motor, Multispectral Camera, OMPHOBBY, payloadcamera, power, Propeller, Radio Module, Radio System, remote control, skydroid, smart controller, Solid-state Li-ion Battery, SUNNYSKY, Survey, Swan, T-Motor, T-MOTOR AIR, T-MOTOR Antigravity, tachometer, tarot, TATTU, test, Tethered Power System, thermalcamera, transmission, U10Ⅱ, U15, U3, U5, U7, U8, U8II Lite, U8Ⅱ, uav, Video Link, VTOL, ZMO, Zoom Camera
- 17 Dec, 2021

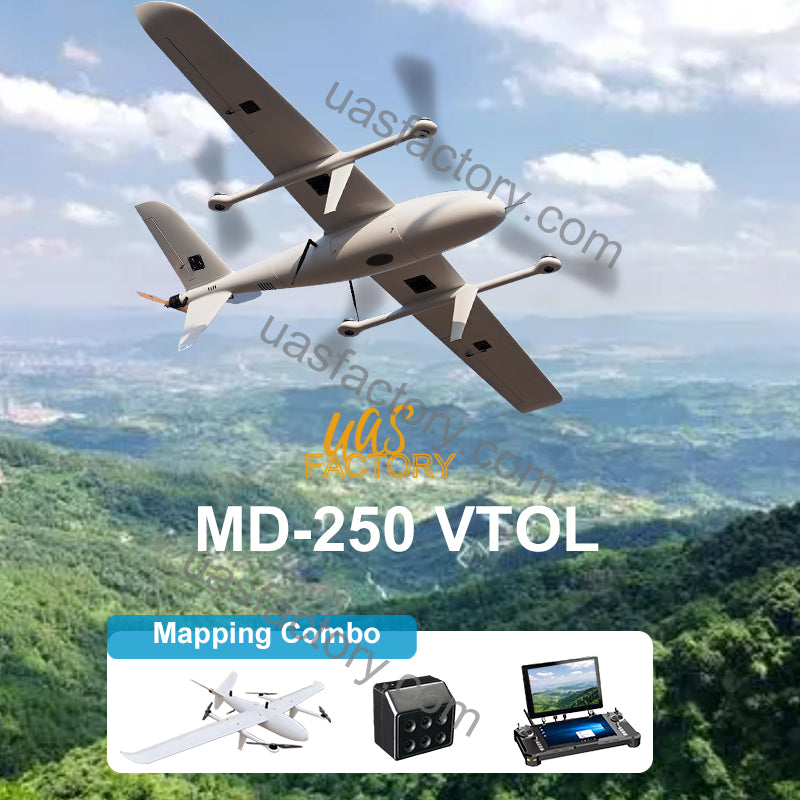

INSIGHT MD-250 is a long-endurance tail-pushed VTOL with high efficiency specifically designed for long-range inspection, surveillance and mapping jobs, which can realize 3.5H endurance with 1.2kg payload.INSIGHT MD-250 adopts carbon fiber integrated molding process, which makes the whole body light and durable, the aerodynamic design and smooth surface ensure a low air resistance.The quick-detach design on both fuselage and cable connector makes it easy to assembly the drone in a short time. In particular, the detachable tail design has the advantages of reducing the volume and convenient transportation. The detachable payload compartment is also convenient for loading different task equipment. With long duration and stable flight performance MD-250 VTOL can be applied in inspection and surveillance,mapping and survey by loading different gimbal cameras or mapping cameras, such as 10x/30x zoom cameras, 3DM-V3, Argus V2 oblique camera and MS600 multispectral camera etc.In mapping combo MD-250 VTOL is equipped with MS600 multispectral camera and DA16S+ radio controller featuring 8km rc/data transmission range, which can be used for crop condition and water quality monitoring, resource investigation etc.MD-250 VTOL equipped with SEEKER-30 TR 30X zoom camera and T30S dual-screen ground control station featuring 15km rc/data/video transmission range can be used for long range inspection like public security, border defense and energy industries.
Specification:
Version: MD-250
Type: VTOL
Color: Grey

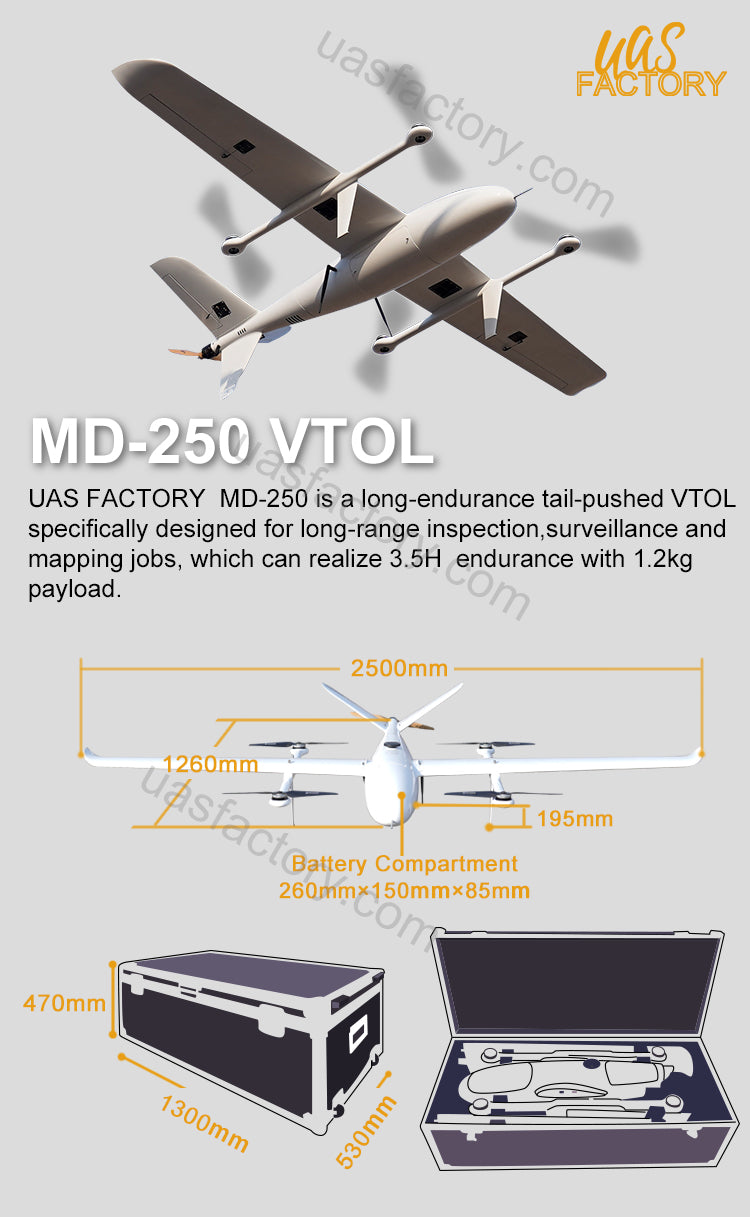

Wingspan: 2500mm
Length: 1260mm
Material: Carbon Fiber
Frame weight: 3.2kg
RTF weight(no battery, no payload): 6.2kg
Max. take-off weight: 0~3000m@13.5kg
Suggested payload(excluding battery/fuel): 1.2kg
Endurance:4h(2x6s 25000mAh battery@no payload)3.5h(2x6s 25000mAh battery@1.2kg payload)
Max cruising speed: 26m/s@12.5kgStall speed:15.5m/s@12.5kg
Max flight altitude:4800m(Max.)
Battery: 2x6S 25000mAh (5.1kg)
Battery cabin: 260mm*150mm*85mm
Wind Resistance: 10.8m/s-13.8m/s(fixedwing); 5.5m/s-7.9m/s(vtol)
Working voltage: 12S
Working temperature: -20℃~45℃；
Carrying case: 1300mm*530mm*470m
