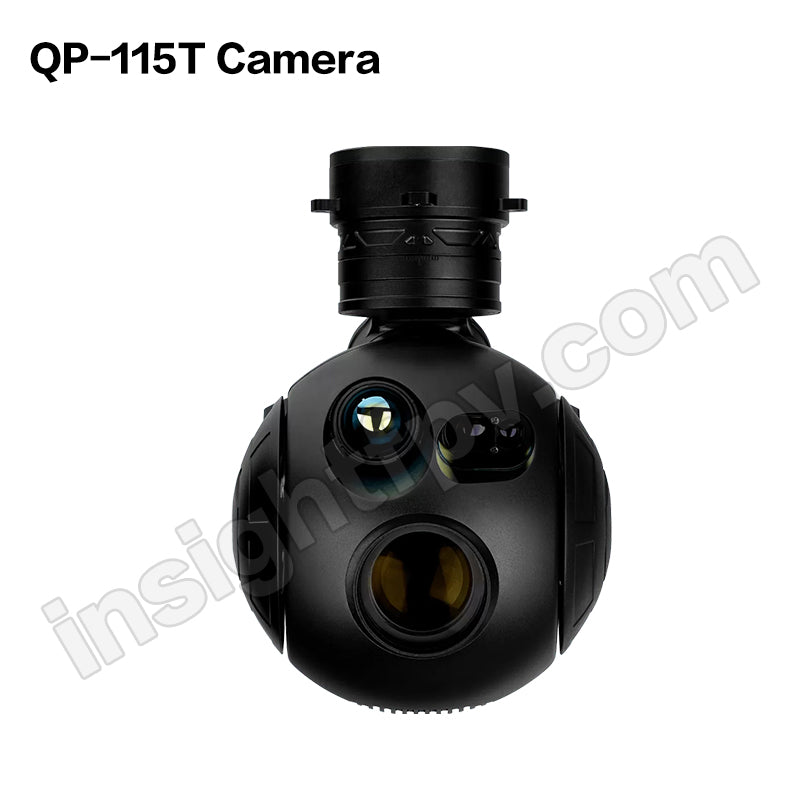

QP-115T Camera

SPECIFICATIONS:

TV

• Band: 0.4 μm – 0.9 μm

• Resolution: 1920 × 1080

• Focal Length: 4.3 mm – 129 mm, 30× Optical Continuous Zoom

• Horizontal Field of View (HFOV): 63.7° – 2.3°

• Detection Range: Human 6.0 km, Vehicle 15.0 km

• Recognition Range: Human 1.5 km, Vehicle 9.0 km

IR (Long‑Wave Uncooled)

• Band: 8 μm – 14 μm

• Resolution: 640 × 512

• Pixel Size: 12 μm

• NETD: ≤ 40 mK

• Focal Length: 25 mm / F1.2

• Field of View (FOV): 17.4° × 14.0°

• Detection Range: Human 0.7 km, Vehicle 3.1 km

• Recognition Range: Human 0.25 km, Vehicle 1.0 km

Laser Rangefinder

• Wavelength: 905 nm

• Ranging Range: 5 m – 1500 m

• Ranging Accuracy: ± 1 m

• Ranging Frequency: 1 Hz

Servo Performance

• Azimuth Range: N × 360°

• Elevation Range: –120° ~ +40°

• Roll Range: ±45°

• Stabilization Accuracy: ≤ 100 μrad

• Angular Velocity: ≥ 60 °/s

• Angular Acceleration: ≥ 150 °/s²

Single‑Target Tracking Performance

• Target Type: Generic Target

• Tracking Rate: ≥ 32 pixels/frame

• Update Frame Rate: ≥ 50 FPS

Multi‑Target Recognition Performance

• Target Types: Human, Vehicle, Boat, Aircraft, etc.

• Recall Rate: ≥ 90 %

• Precision Rate: ≥ 80 %

• Minimum Target Size: 32 × 32 pixels @ 1080p

• Number of Tracked Targets: ≥ 20

• Tracking Jump Rate: ≤ 15 %

• Update Frame Rate: ≥ 20 FPS

Video & Storage

• Photo Format: JPEG

• Video Format: MP4

• Encoding Format: H.264, H.265

• Video Protocol: RTSP, UDP, etc.

• Storage Capacity: 128 GB

Power Characteristics

• Input Voltage Range: 11 – 28 VDC

• Average Power Consumption: 15 W

• Peak Power Consumption: 50 W

Electrical Interfaces

• Communication Interface: Serial Port (RS422/RS232/TTL optional), 100 M Ethernet

• Video Interface: 100 M Ethernet

Environmental Compliance

• Operating Temperature: –20 ℃ ~ +60 ℃

• Storage Temperature: –40 ℃ ~ +70 ℃

Dimensions & Weight

• Weight: ≤ 1.0 kg

• Dimensions: ≤ Ø 115 mm × 172 mm
