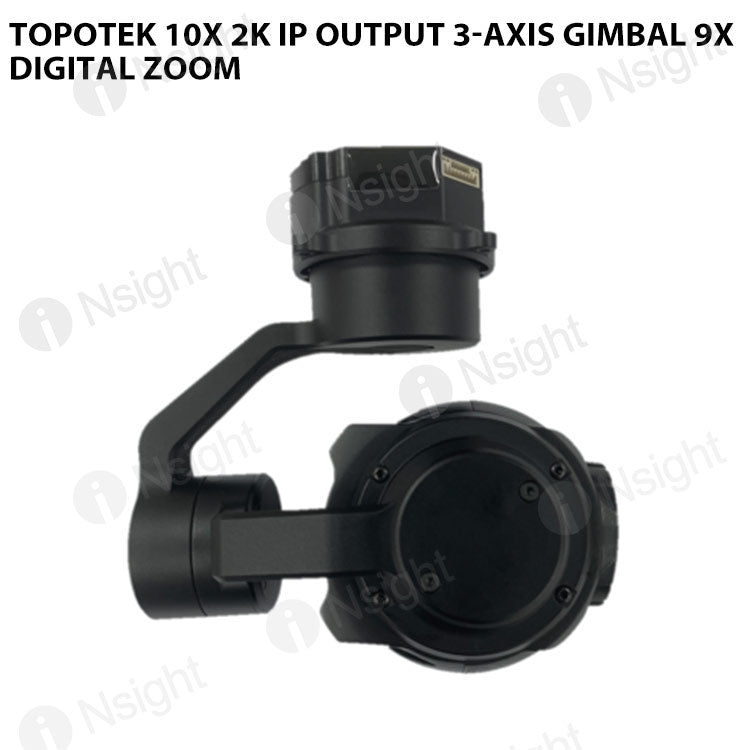

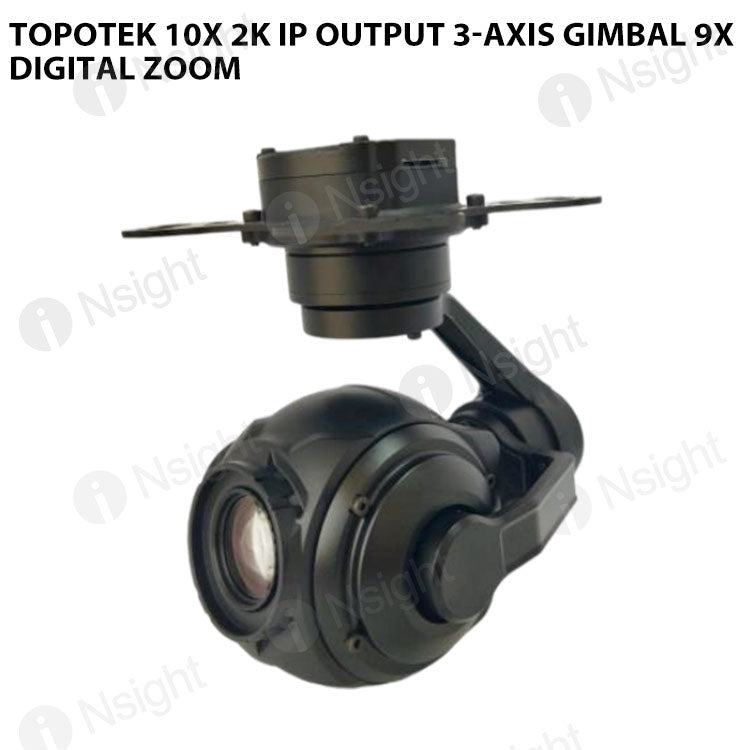

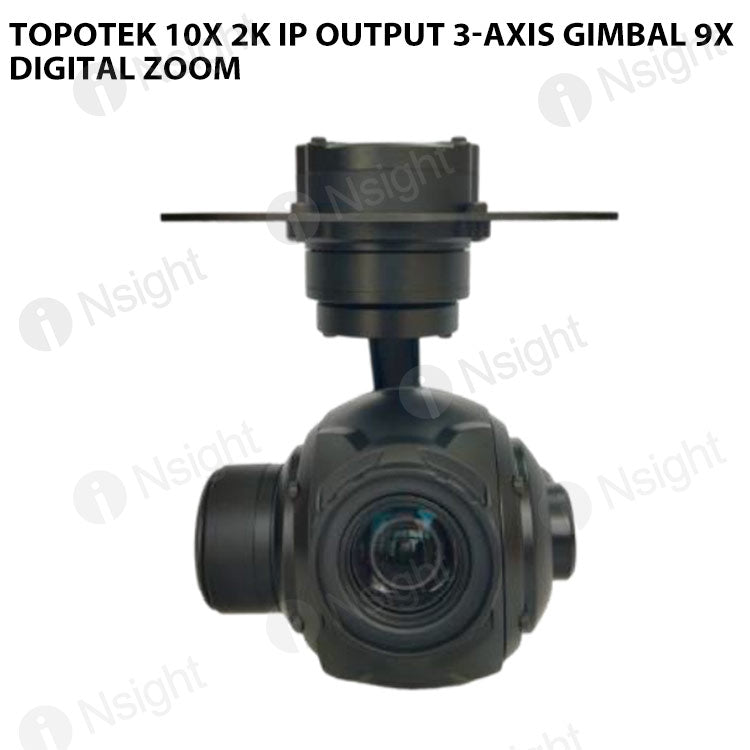

Topotek TQ10N 10x 2K IP output 3-Axis gimbal 9x digital zoom

Package Including:
TQ10N 10X optical zoom camera * 1pcs
Gimbals assembling mount * 1pcs
cables * 1 set
Gimbals quick-release part * 1pcs (send for free)

TQ10N Camera gimbals is an excellent 3-axis zoom developed for aircraft, multirotor and VOLT fixed wing.
The camera is equipped with a 10x optical zoom lens, a 1/3 CMOS sensor, 4 million effective pixels and supports 8X digital zoom.
The gimbals adopts high-precision encoder FOC control scheme, which is characterized by high stability, small size, light wight and low power consumption.
Network IP output mode. It can be widely used in entertainment drone, profession aerial photography drone and other industry application.

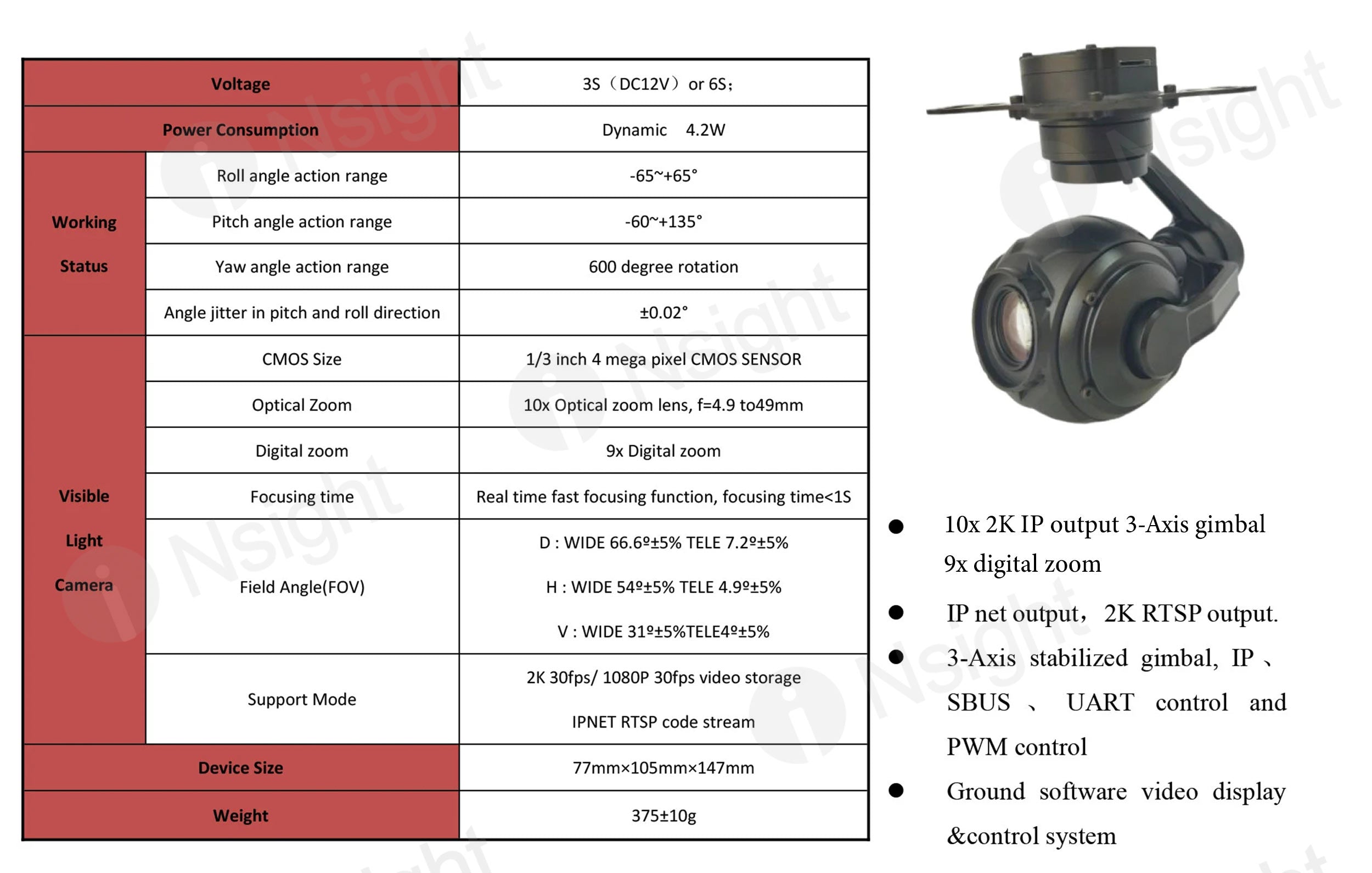

Specifications
Product parameters
Name: TQ10N
Input power: 3S-6S (12-26V)
Working current: 410ma
Weight: 385g
Max controllable rotation speed: 77mm*105mm*147mm(L*W*H)
Controllable rotation range: TILT：- 60 deg~ +135 deg
Attitude control accuracy: ±0.02deg

Camera
Sensor: Effective Pixels:4 Million
Lens: 10x optical zoom
Digital zoom: 8x digital zoom
Output interface: Network IP mode, RTSP stream
Output format: 2k 30FPS H.264
Video storage format: H.265
Working: Record
Exposure Compensation: Auto( default Shutter Priority )
Exposure Compensation: ±2.0（1/3 increments）
Metering Mode: Average metering
Electronic Shutter Speed: Auto
White Balance: Auto/Daylight / cloudy / fluorescent light / tungsten lamp
Video Captions: Supported
One Key to 1× Image: Supported
Anti-flicker: 50Hz，60Hz
PAL/NTSC: Supported
Supported SD Cards: Max.Capacity:128GB
Supported File Systems: FAT32
