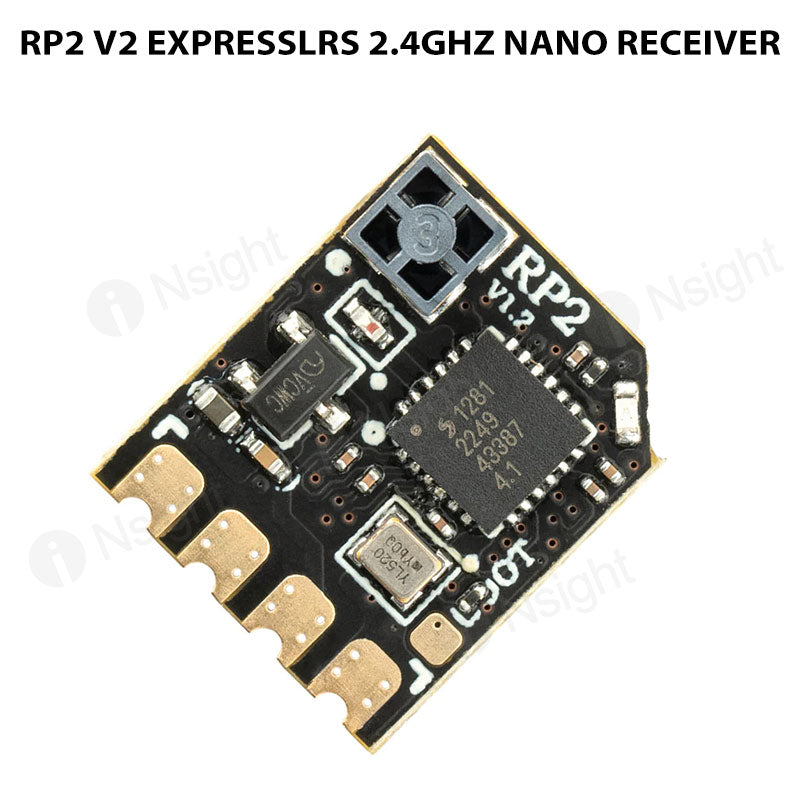

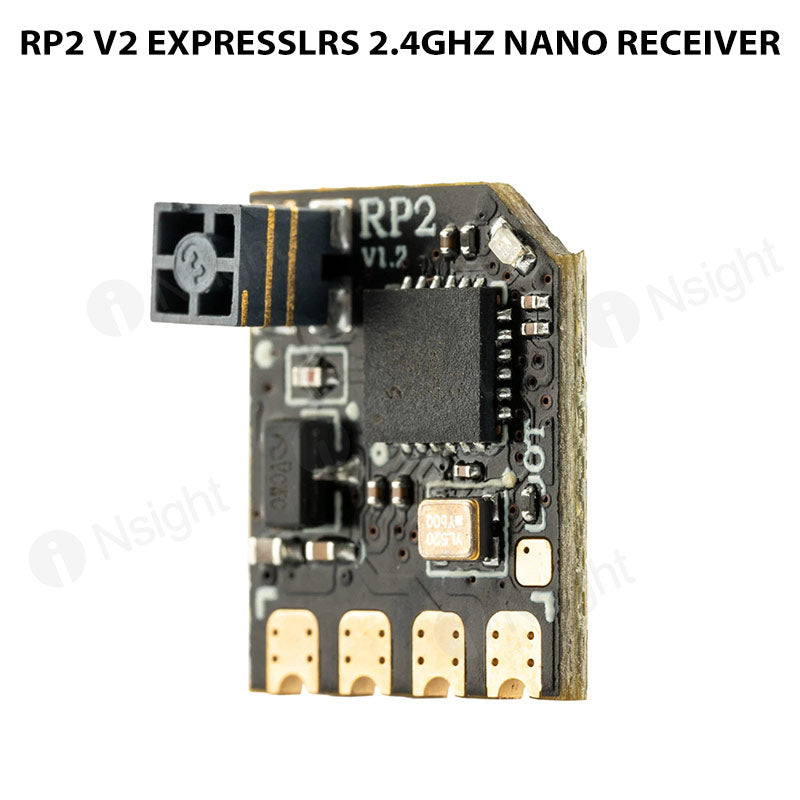

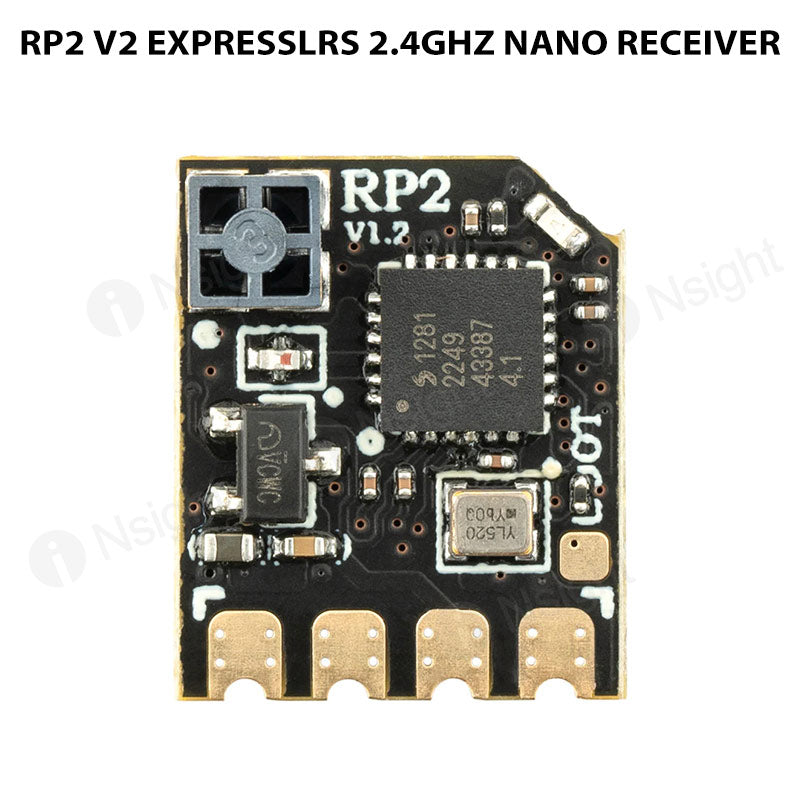

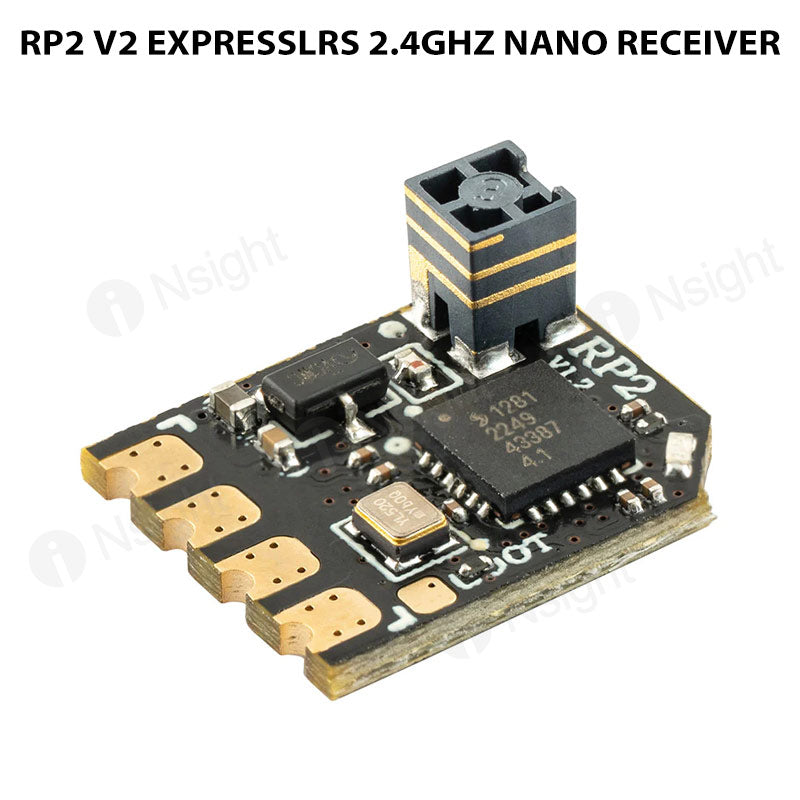

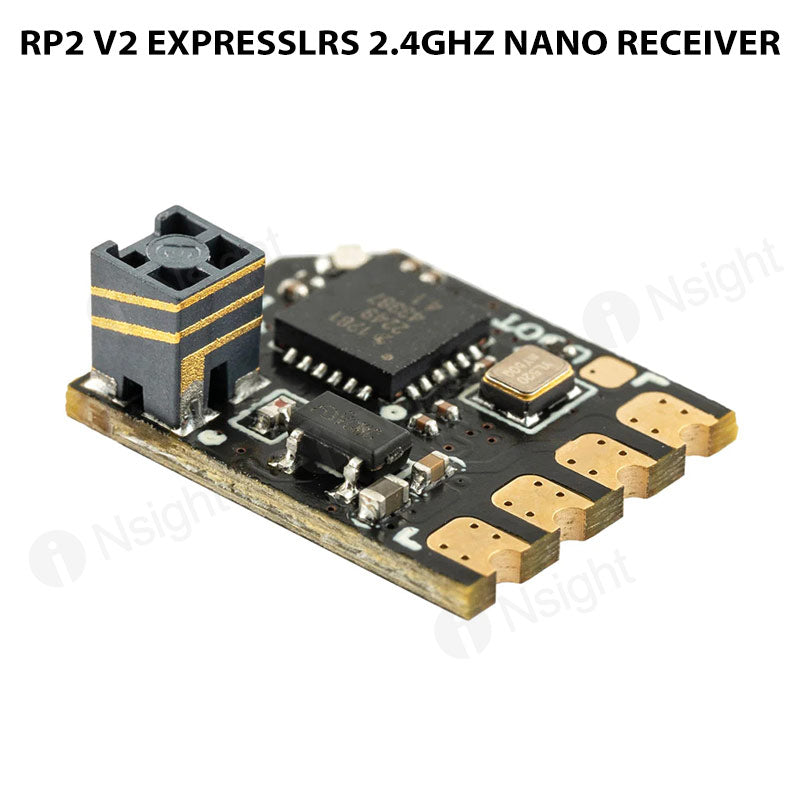

RP2 V2 ExpressLRS 2.4ghz Nano Receiver

Features

• Improved PCB design is better for heat dissipation.
• LED on the top side of PCB.
• Solder pads are improved and easier to solder to.
• Built-in a TCXO (temperature compensated crystal oscillator)
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification

• Item: RP2 Nano ExpressLRS 2.4ghz Receiver
• Type: ISM
• MCU: EPS8285
• RF Chip: SEMTECH SX1281
• Telemetry RF power: 10mW
• Antenna: On Board SMT Antenna
• Antenna: 65mm 2.4ghz T Antenna
• Frequency Range: 2.404 - 2.479 Ghz
• Maximum receive refresh rate: 500Hz/F1000Hz
• Minimum receiver refresh rate: 25Hz
• Working voltage: 5v
• Weight: 0.55g (On Board antenna)
• Dimension: 13mm*11mm*7mm
• Firmware Version: ExpressLRS v2.4 pre-installed
• FW Target: RadioMaster RP1/2 2400 RX
• Bus interface: CRSF
