Swan S-720 Quadcopter
- 24 Dec, 2021

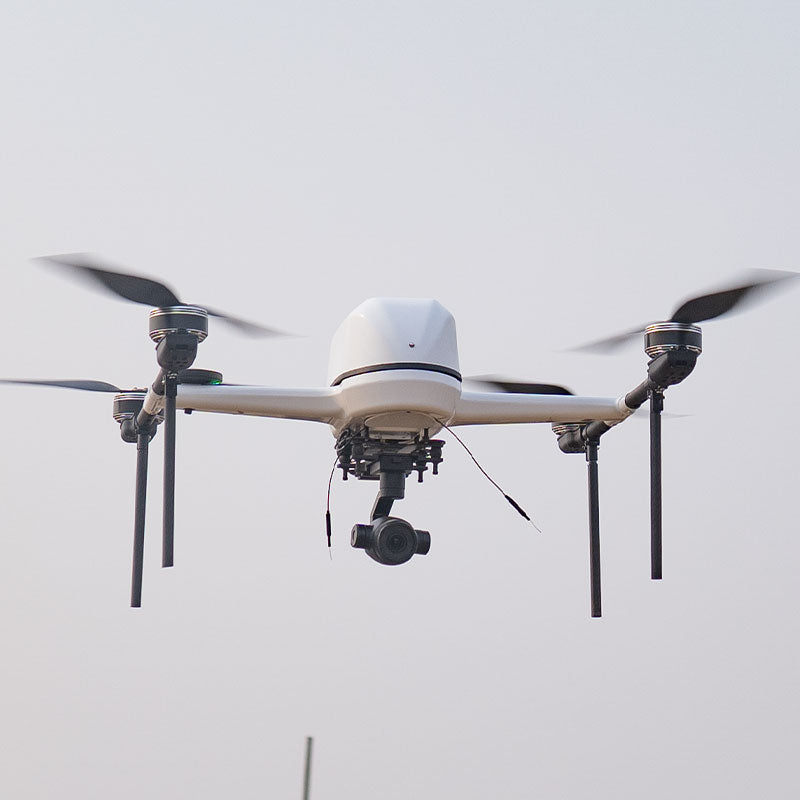

Swan S-720 is a reliable and portable quadcopter for customers to do mapping jobs and long range inspection. Swan is a weatherproof drone made from carbon fiber and glass fiber materials, the whole body is light and durable.The lightweight design, small size and folding landing gear make it easy to carry.Swan S-720 is equipped with efficient power system offering up to 70 minutes endurance (no payload) and Max.2.5kg payload. It is recommended for clients whose jobs require a longer flight time while still considering weather proofing and robustness.In inspection combo Swan S-720 is equipped with EH314 4K gimbal camera and MX16 ground control station which is integrated with video/data/rc/android system all in one and with 10km transmission range (test in open environment without any obstacles or electromagnetic interference). Swan S-720 equipped with gimbal camera such as EH314 and Seeker-10 can be applied in many fields: railways, roads and bridges monitoring, power lines and wind turbines inspection, search and rescue etc; In mapping combo Swan S-720 is equipped with Map-01 full frame mapping camera and DA16S+ radio controller, which can complete 0.6 square kilometer area mapping job in a 47-min-flight (10m/s speed, 100m altitude).
Specification:
Wheelbase: 720mm
Size:58.5x54.5x31cmRTF
Weight: 2.2kg(no battery)
Take-off Weight:4.2kg(with1x6s 22000mAh battery)
Max.Payload: 2.5kg
Hovering Time: 70min (no payload)
Battery: Diamond 6s 22000mAh
Features:
- Compact and foldable, easy to carry around - Robust and weatherproof, small but tough - 70min endurance(no payload) - Suggested max. payload 2kg(battery excluded) - Pixhawk cube orange flight controller with Here 3 GNSS, to realize RTK positioning
Three Recommended Combos:
- 70min Ready to Fly combo
- 47min Mapping combo, achieve 0.6 square kilometer area mapping and survey
- 10km range inspection/patrol combo with 14x zoom 4K gimbal camera
