iNsight EH10-TIR Dual Sensor 10X Optical Zoom Camera with 3-axis Gimbal
- Accessories, AIR, Battery, Carbon fiber, charger, CUAV, Date Link, dji, DLE, Drill, drone, ESC, F15, FPV, Gasoline, Generator, Generator for Drone, gimbal camera, hexacopter, Hot Shoe, light, LiPo, M1500, M300, mapping, mapping camera, MN1010, MN1015, MN501-S, MN505-S, MN601-S, MN605-S, MN701-S, MN705-S, MN801-S, MN805-S, Module, motor, Multispectral Camera, OMPHOBBY, payloadcamera, power, Propeller, Radio Module, Radio System, remote control, skydroid, smart controller, Solid-state Li-ion Battery, SUNNYSKY, Survey, Swan, T-Motor, T-MOTOR AIR, T-MOTOR Antigravity, tachometer, tarot, TATTU, test, Tethered Power System, thermalcamera, transmission, U10Ⅱ, U15, U3, U5, U7, U8, U8II Lite, U8Ⅱ, uav, Video Link, VTOL, ZMO, Zoom Camera
- 08 Dec, 2021
Note: EH10-TIR is for multirotors only.
EH10-TIR is a 3-axis gimbal with 10X optical zoom camera and 640*480 thermal camera. It provides Ethernet output only, and the effective pixel is 2MP. It can be loaded on drones like RHEA 160 hexacopter for inspection, surveillance, emergency monitoring, search and rescue etc.
· EO/IR SensorsEH10-TIR supports EO(electro-optical) and IR(infrared) detection, so it allows you to detect targets in the night or low visibility conditions. The working principle of thermal camera is to detect by heat source, so it can be used to detect fire spark in forest and the location of people or animals etc.
· 360°Infinite RotatingEH10-TIR supports 360 degrees rotation, which is very convenient for shooting and no need to worry about getting stuck due to the angle limit.
· Easy to useEH10-TIR applies quick-mount design, so it can be installed easily. 480g light weight and small size almost doesn’t burden the drone.EH10-TIR ground station also supports point-zooming, one-button back to center, very convenient.
· High AccuracyHigh-performance 3-axis gimbal can provide ±0.008°accuracy, giving you clearer images.

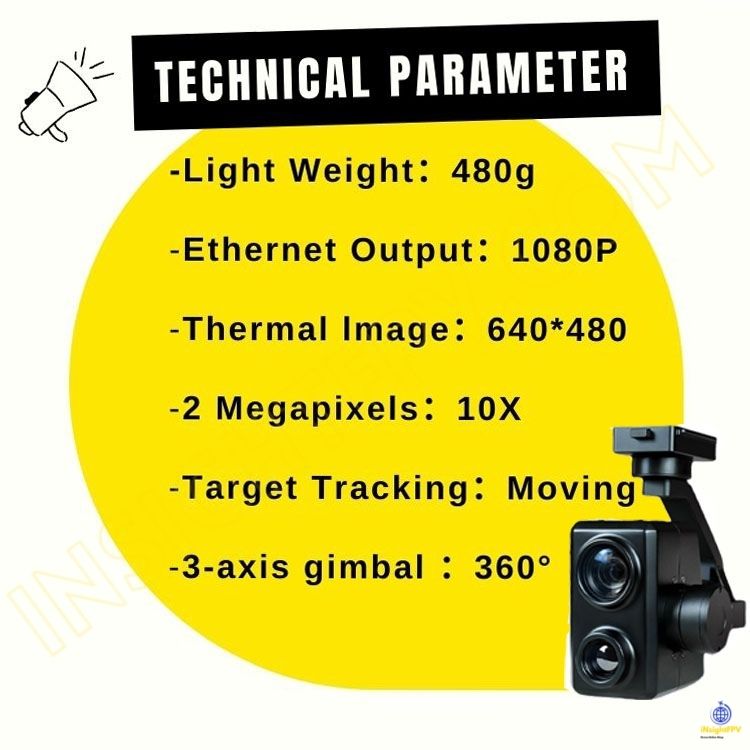

Features:
-480g light weight
-3-axis high stabilized gimbal system-CMOS 1/2.8″, 2megapixels
-10X optical zoom, 1080P output
-640*480 Thermal Camera-Ethernet output
Your Purchase Includes:1x EH10-TIR Dual Sensor 10X Optical Zoom Camera with 3-axis Gimbal for Multirotor1x Carrying Case
