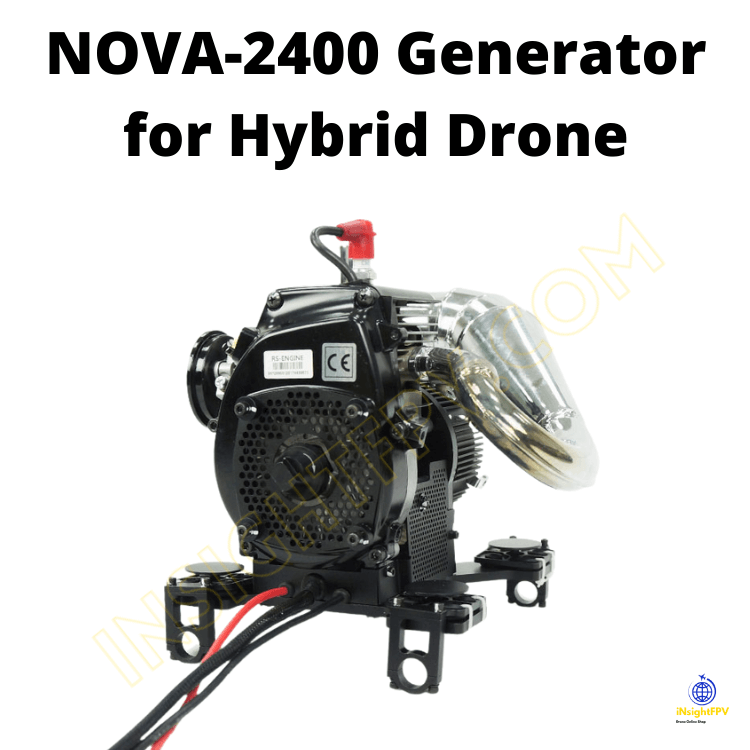

NOVA-2400 Generator for Hybrid Drone
- Accessories, AIR, Battery, Carbon fiber, charger, CUAV, Date Link, dji, DLE, Drill, drone, ESC, F15, FPV, Gasoline, Generator, Generator for Drone, gimbal camera, hexacopter, Hot Shoe, light, LiPo, M1500, M300, mapping, mapping camera, MN1010, MN1015, MN501-S, MN505-S, MN601-S, MN605-S, MN701-S, MN705-S, MN801-S, MN805-S, Module, motor, Multispectral Camera, OMPHOBBY, payloadcamera, power, Propeller, Radio Module, Radio System, remote control, skydroid, smart controller, Solid-state Li-ion Battery, SUNNYSKY, Survey, Swan, T-Motor, T-MOTOR AIR, T-MOTOR Antigravity, tachometer, tarot, TATTU, test, Tethered Power System, thermalcamera, transmission, U10Ⅱ, U15, U3, U5, U7, U8, U8II Lite, U8Ⅱ, uav, Video Link, VTOL, ZMO, Zoom Camera
- 17 Feb, 2022

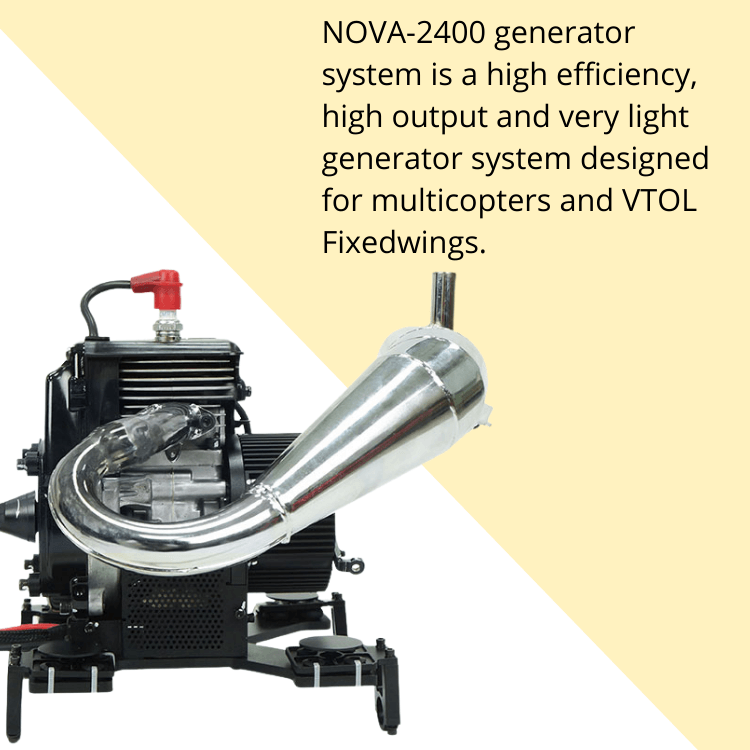

The NOVA -2400 generator system is a highly efficient, powerful and very lightweight generator system designed for multicopters and VTOL fixedwings. The continuous output power of this generator is 2400 W and is suitable for high payload or high altitude work. The maximum takeoff weight of the Gaia 160 with this generator is 23 kg. With this generator you can lift 2 kg payload and fly about 2.5 hours.
Compared with NOVA -2000, NOVA -2400 has a newly developed exhaust pipe and cooling system, which can greatly increase the performance of the internal engine. By using NOVA -2400 generator, your drone will be more than five times better than before, both in terms of range and flight time. So the NOVA -2400 generator system is a good choice for customers who want to fly over a long range and very long time.
Due to the high efficiency of NOVA -2400 generator system, the multicopter equipped with NOVA -2400 can be used in many fields, such as power line inspection, mapping industry and logistics, etc. You can also equip an agricultural sparyer with this generator, which can load 10 litres of pesticide, and the total cost will be much lower compared with a pure electric drone.

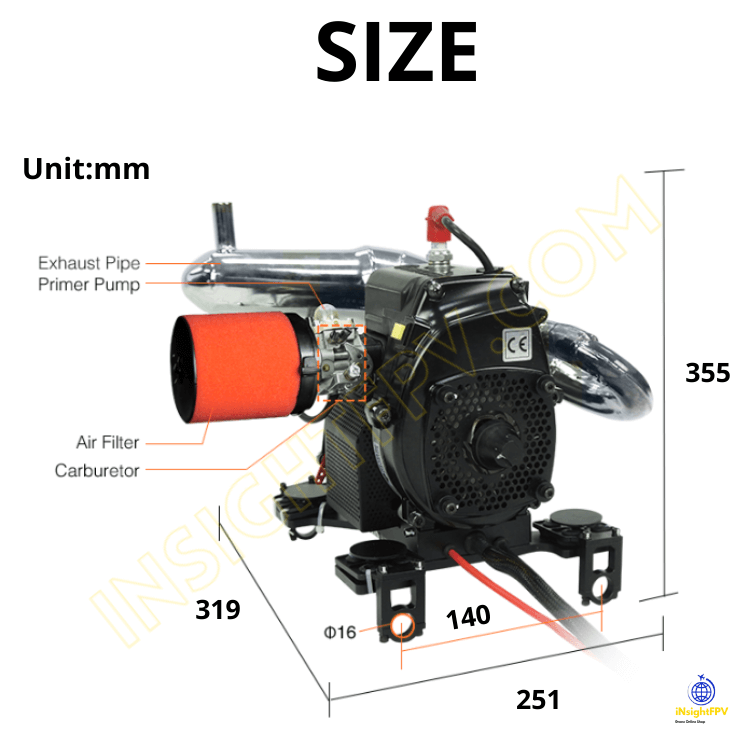

Generator weight: 4.2kg
Generator output: 2.4kw(continuous);2.4kw/1000m,1.9kw/1500m,1.8kw/2000m
Recommanded Max take-off Weight: 23kg(the parameter of GAIA 160)
Output voltage DC: 12S
Fuel consumption: 2kg/h(830g/kw.h)
Service temperature: -20 ~ 40°C
Altitude(above sea): 2000m
Applicable UAV types: Multicopters, VTOL Fixedwings
