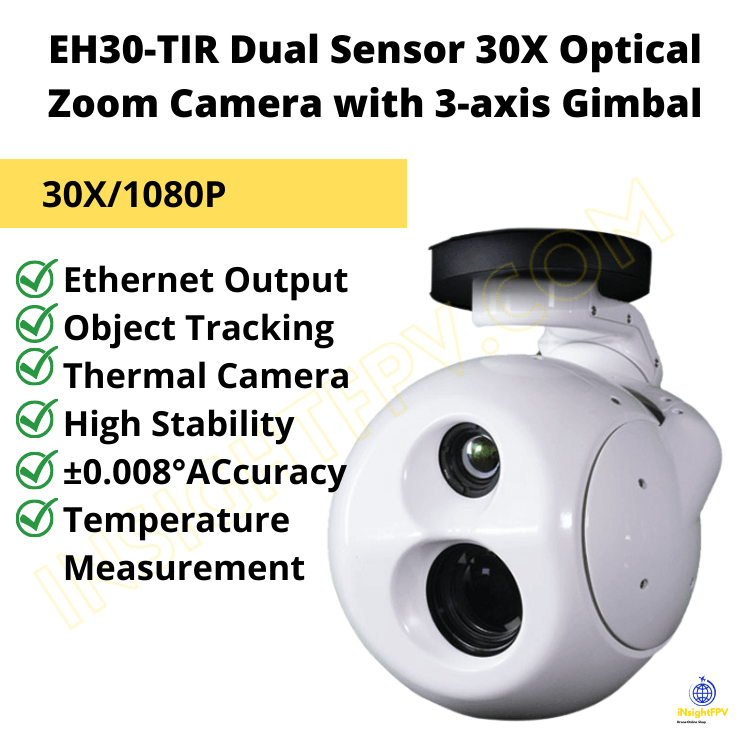

EH30-TIR Dual Sensor 30X Optical Zoom Camera with 3-axis Gimbal
- Accessories, AIR, Battery, Carbon fiber, charger, CUAV, Date Link, dji, DLE, Drill, drone, ESC, F15, FPV, Gasoline, Generator, Generator for Drone, gimbal camera, hexacopter, Hot Shoe, light, LiPo, M1500, M300, mapping, mapping camera, MN1010, MN1015, MN501-S, MN505-S, MN601-S, MN605-S, MN701-S, MN705-S, MN801-S, MN805-S, Module, motor, Multispectral Camera, OMPHOBBY, payloadcamera, power, Propeller, Radio Module, Radio System, remote control, skydroid, smart controller, Solid-state Li-ion Battery, SUNNYSKY, Survey, Swan, T-Motor, T-MOTOR AIR, T-MOTOR Antigravity, tachometer, tarot, TATTU, test, Tethered Power System, thermalcamera, transmission, U10Ⅱ, U15, U3, U5, U7, U8, U8II Lite, U8Ⅱ, uav, Video Link, VTOL, ZMO, Zoom Camera
- 21 Mar, 2022
Note: Do not detach the gimbal camera when it is powered on, as it may damage the camera.
Standard Version is for VTOLs and Multicopters; Quick-Detach Version is for Multicopters only.
EH30-TIR is a 3-axis high precision gimbal with a 30X optical zoom camera and 640*480 thermal camera, which can be mounted on multirotors or VTOLs for inspection, surveillance, search and rescue.
EH30-360TIR supports Ethernet output only, the video output resolution is 1080p/25fps, the effective pixel is 2.16MP. The working principle of thermal camera is to detect by heat source, so it can be used to detect fire spark in forest and the location of people or animals etc.
EH30-TIR 3-axis gimbal developed based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30X optical zoom. The 30X zoom enables you to see objects in detail over distance. The gimbal control speed is adjustable, fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick; low speed mode is used for large zooming range, which will enable you to target the object more accurately. EH30-TIR supports 360 degrees rotation, which is very convenient for shooting and no need to worry about getting stuck due to the angle limit. EH30-TIR supports dual sensors object tracking, it is able to track static or moving target easily. EH30-TIR 3-axis gimbal can be controlled via SBUS and TCP.
EH30-TIR ground station also supports point-zooming, one-button back to center, very convenient. EH30-TIR can be loaded on drones like AYK-250 VTOL and RHEA 160 hexacopter for power line inspection, emergency monitoring and inspection, search and rescue etc.
-3-aixs high stabilized gimbal system
-CMOS 1/2.8″, 2.16megapixels
-30X/1080P optical zoom
-640*480 Thermal Camera
-Auto object tracking
-20°C~ 550°C temperature measurement range
-128G SD Card
-SBUS, TCP control
